The printer is showing the error "Hotend thermal runaway: Check the print head thermistor wiring for potential damage".
Error name: Hotend thermal runaway
Error code: #31204 (CORE One) #35204 (CORE One L) #26204 (MK4S) #13204 (MK4) #27204 (MK3.9S) #21204 (MK3.9)
The error will show if the temperature on the nozzle drops by 12 ºC for an extended period of time. This temperature drop would usually not be an issue, but if the heat is not recovered after 60 seconds the error will happen. In this case, the printer will stop the heating and display the message on the screen.
This error can be caused by any damage to the hotend heater or the hotend thermistor.
Ensure that the hotend thermistor is fully inserted in the heater block, and not loose. If needed, use these guides as a reference on how to access the hotend, and in addition to these, remove the silicone sock if installed, to have access to the set screws that hold the thermistor and heater in place.

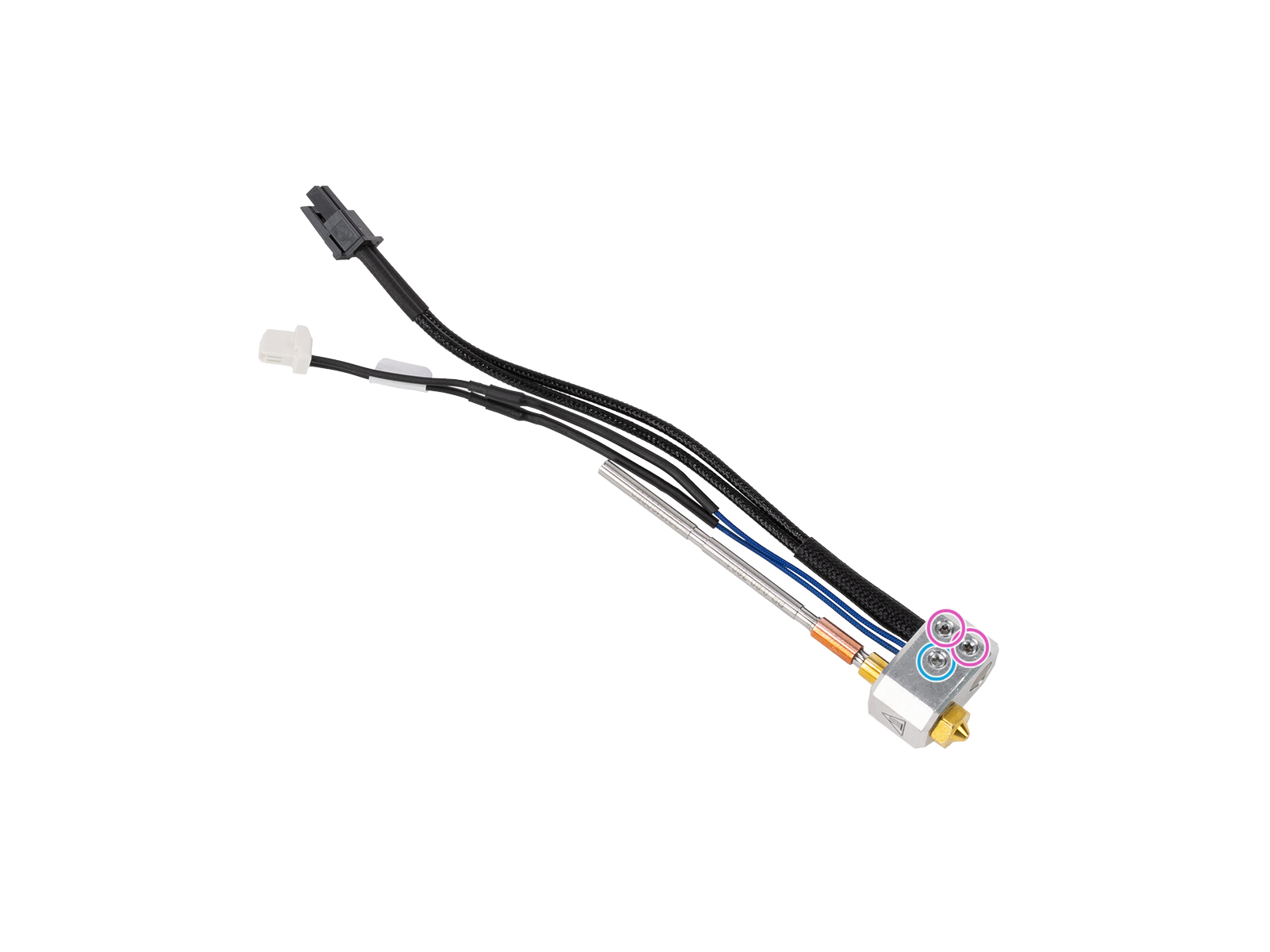

Nextruder hotend with view of its heater block, with the set screws holding the thermistor and the heater in evidence.
Access the LoveBoard and check the heater and thermistor cables. Make sure that they are connected correctly and that there is no damage along their length.
 |  |
Using a T10 Torx key, loosen and remove one M3x6rT bolt. Then, release the side cover.
 |  |
Using a 2.5mm Allen key, remove the M3x10 screw on top of the cover to release it.
 |  |
Slide the LoveBoard cover upward to remove it from the Nextruder
On the xBuddy board, check if the fuse that protects the extruder is not damaged.
Make sure that the Loveboard main cable is correctly connected to the xBuddy board, and not pinched.
Locate the xBuddy board case. Looking at the printer from its rear, it is the rightmost case.
Using a T10 Torx key, remove six M3x4bT bolts to release the xBuddy box cover.
The bottom larger board is the xBuddy board, while the top smaller board is the xBuddy extension board.
 |  |
Locate the Wi-Fi module on the rear panel of the printer. Using a 2.5 mm Allen key, remove the M3x14 screw. Gently pull the Wi-Fi module straight downward to remove it from the printer.
 |  |
From the inside of the printer, locate on the rear side the highlighted M3x4bT bolts.
Using a T10 Torx key, remove two M3x4rT bolts to release the rear xBuddy box cover. Lift the cover to expose the xBuddy and xBuddy extension boards.
 |  |
Access the xBuddy board by loosening four M3x6 bolts.
If you have a multimeter available, use this guide to check the resistance on the hotend heater and the hotend thermistor.
