<p>When you're browsing Printables.com, you can send models to PrusaSlicer with a single click.</p>
<p>Download PrusaSlicer 2.6.0 (at least an alpha version) and enable this feature :</p>
<p><em>Configuration ➝ Configuration wizard ➝ Downloads ➝ Allow build-in downloader</em></p>
<p><img decoding="async" src="https://cdn.help.prusa3d.com/wp-content/uploads/2023/01/prusaslicer_setting-1.png" sizes="(min-width: 1024px) 820px, 100vw" srcset="PrusaSlicer - Printables.com integration" alt="" width="595" height="380" loading="lazy" /></p>

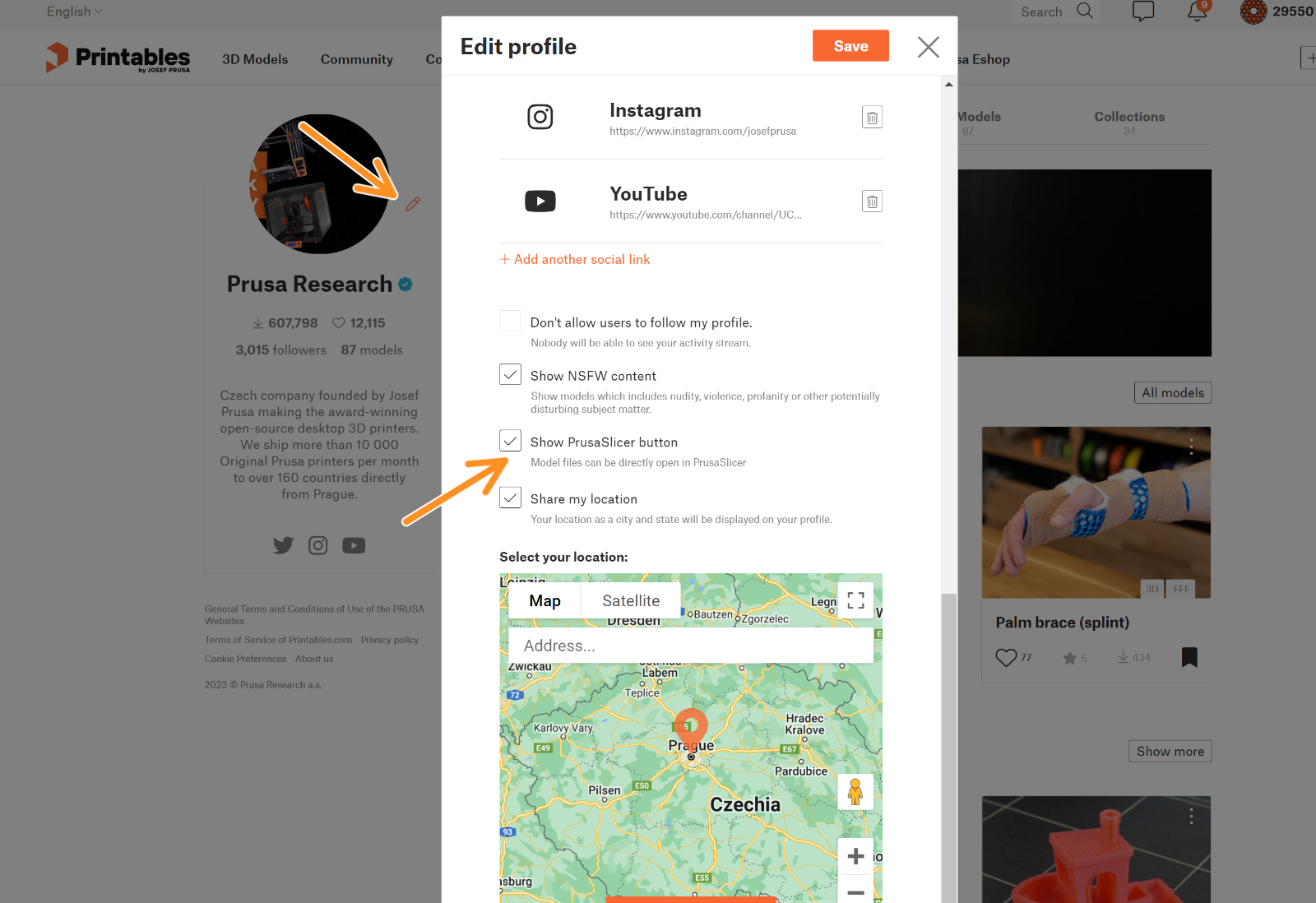

<p>Then go to your Printables profile settings and enable <em>Show PrusaSlicer button</em>.</p>
<p><img decoding="async" src="https://cdn.help.prusa3d.com/wp-content/uploads/2023/01/10aa435494cae84f_painted.png" sizes="(min-width: 1024px) 820px, 100vw" srcset="PrusaSlicer - Printables.com integration" alt="" width="1600" height="1098" loading="lazy" /></p>
<p>A new button will appear next to the download button on all 3D files on Printables.</p>
<p><img decoding="async" src="https://cdn.help.prusa3d.com/wp-content/uploads/2023/01/e45478673c05f724_painted.png" sizes="(min-width: 1024px) 820px, 100vw" srcset="PrusaSlicer - Printables.com integration" alt="" width="1600" height="921" loading="lazy" /></p>


PrusaSlicer - Printables.com integration

PrusaSlicer - integrace s Printables.com

PrusaSlicer - Printables.com Integration

PrusaSlicer - integración con Printables.com

Intégration PrusaSlicer - Printables.com

PrusaSlicer - integrazione Printables.com

PrusaSlicer - Printables.com integration [進行中の翻訳]

PrusaSlicer - integracja z Printables.com

Original Prusa Curing and Washing Machine (CW1S) is a recommended accessory for the Original Prusa SL1S

Original Prusa CW1 to CW1S platform upgrade

Original Prusa Enclosure assembly

Original Prusa XL - beta test

Original Prusa XL assembly

The Original Prusa i3 MK3S+ is the successor of the award-winning Original Prusa i3 MK2S 3D printer.

Original Prusa i3 MK3S+ kit assembly

Original Prusa SL1 to SL1S SPEED upgrade

Original Prusa MINI+ kit assembly

The Original Prusa MINI+ is a compact 3D printer with all the bells and whistles you would expect from the creators of the award-winning Original Prusa i3 MK2 and MK3S!

Original Prusa MINI+ semi-assembled

Original Prusa i3 to MMU2S upgrade

Original Prusa i3 MK3/MK3S to MK3S+ upgrade

Original Prusa SL1 3D printer is based on the MSLA printing process. Unlike Original Prusa i3 machines, this printer uses a high-resolution LCD panel and a UV LED to cure thin layers of resin to achieve an unprecedented level of detail.

Original Prusa SL1 kit assembly

The Original Prusa i3 MK3S is the successor of the award-winning Original Prusa i3 MK3 3D printer.

Original Prusa i3 MK3S kit assembly

Original Prusa i3 MK1 to MK2 upgrade

Original Prusa i3 Plus 2.85 mm to 1.75 mm upgrade

Original Prusa i3 Plus 1.75 mm to MK2S upgrade

Original Prusa i3 Plus 1.75 mm kit assembly

Original Prusa i3 MK2 to MK2S upgrade

Original Prusa i3 MK2/S to MMU1 upgrade

The Original Prusa MINI/MINI+ is a compact 3D printer with all the bells and whistles you would expect from the creators of the award-winning Original Prusa i3 MK2 and MK3S!

Original Prusa MINI assembly

Original Prusa i3 MK2S is a successor to Original Prusa i3 MK2 with small hardware tweaks for easier assembly and improved reliability.

Original Prusa i3 MK2S kit assembly

Original Prusa i3 MK2 kit assembly

Original Prusa i3 MK2S to MK3 upgrade

The Original Prusa i3 MK3 is the successor of the award-winning Original Prusa i3 MK2 3D printer.

Original Prusa i3 MK3 kit assembly

Original Prusa i3 MK3 to MK3S upgrade

Original Prusa i3 MK2 MMU1 to MK2.5S MMU2S

Original Prusa i3 MK2 to MK3S upgrade

Original Prusa i3 MK3/MK2.5 to MMU2 v1.01

Original Prusa i3 MK2.5 to MK2.5S upgrade

Original Prusa i3 MK2 to MK2.5S upgrade

Assembly manuals

Basic calibration

Advanced calibration

What to do when the printer reports an error message during calibration.

Calibration Error Messages

All information you need to know to learn how to calibrate your 3D printer to achieve perfect prints.

Calibration

Printer description

Printer features

FAQs and other useful information you might be interested in before or after making your purchase at shop.prusa3d.com

General Information

Basic overview of your 3D printer and it's features, plus general Prusa Research info.

About your printer

3D models

Material guide

Printer maintenance

Prusa Connect & PrusaLink

Slicing

In this section, you can find material guides, printer troubleshooting and general info about using your printer.

Using the printer

Print Quality Troubleshooting

Printer troubleshooting

QR Error codes

Print Error Messages

Description of how to recognize and solve common problems, especially hardware and electronics related.

Troubleshooting

Nozzles

Octoprint

Printer simulator

Protective Shields

Learn about different nozzles, Raspberry Pi connection, Octoprint and more.

3rd party accessories & Other projects

About PrusaSlicer

Configuration and profiles

User interface

Input/output

Left toolbar

Top toolbar

Print settings

Filament settings

Printer settings

Advanced features

Multi-material slicing

SLA slicing

Other (PrusaSlicer)

The official documentation for the PrusaSlicer slicing software. From basic configuration to advanced settings like modifier meshes.

PrusaSlicer

P.I.N.D.A. sensor

Thermistor

Filament sensor

M.I.N.D.A. sensor

MINI

Tube fitting

Print fan

USB port

Power Button

Liquid Resin

Curing / Solidifying

Lid (SL1)

Whole mechanical assembly of SL1 print platform

Tilt

Tank

Selector knob

Filament buffer

Wipe tower / Purge tower

Micro USB port

Reset button

Firmware

Long PTFE between an extruder motor and hotend

Bowden tube

Controller board

Blade

Hotend

Ethernet port (LAN)

Power switch

Extruder / Extruder motor

Nozzle

Print head

Extruder PTFE tube (bowden MINI)

LCD screen

Spool holder

SL1 file (*.sl1)

Print display (SL1)

Heatbed

Belt tension

Extruder

Flexible steel sheet

Chimney (IR-sensor-holder-MMU2S)

Control Buttons (MMU2S)

Indicator LEDs (MMU2S)

Selector motor (MMU2S)

Pulley motor (MMU2S)

Idler motor (MMU2S)

F.I.N.D.A. sensor (MMU2S)

Live Adjust Z

Filament tip

Tension Screws (MMU2S)

Idler screw

Print speed

Heater cartridge

Filament sensor introduced with the S-upgrade of MK3 and MMU2

IR filament sensor

Selector (MMU2S)

MMU idler (MMU2S)

Diameter of filament compatible with Original Prusa printers.

1.75 mm

FFF/FDM

Filament

Bondtech gears

Hotend thermistor

Heatbed thermistor

Heat block

Modifier meshes

Support enforcers

Support blockers

Hollowing

Original Prusa MK3

Original Prusa MK3S

Original Prusa SL1

Original Prusa MMU2S

Touch screen

Check the cables

Tower / Z-Axis

UV led panel

Knob (SL1)

Connected to the printer and used with Octoprint

Raspberry Pi

Prusa Connect

Prusa Connect Local

SD card

USB drive

Test

test relation1122

Einsy

Original Prusa MK2.5

Original Prusa MK2.5S

Heatsink

Print platform

SuperPINDA

Mesh bed leveling

for securing PTFE in the MINI brass fitting

Olive

Buddy board

FEP foil

Tilt motor

Cantilever

Hotend fan

<div>
<div class="warning-callout">It seems that the latest 3DConnexion driver delivers a configuration file, which is no longer compatible with the 3DConnexion driver binary. We have reported this bug to 3DConnexion.</p>
<p>If your 3DConnexion device does not work with the driver you will likely need to do the following for now: <a href="https://github.com/prusa3d/PrusaSlicer/issues/7277#issuecomment-1006359238">https://github.com/prusa3d/PrusaSlicer/issues/7277#issuecomment-1006359238</a><br />
(updated January 2022)</div>
<p>PrusaSlicer (from version 2.2.0) supports the following 3Dconnexion devices:</p>
</div>
<div>
<ul>
<li>Spacemouse plus XT</li>
<li>Cadman</li>
<li>Spacemouse classic</li>
<li>Spaceball 5000</li>
<li>Space traveller</li>
<li>Space pilot</li>
<li><strong>Space navigator (TESTED)</strong></li>
<li>Space explorer</li>
<li>Space navigator for notebooks</li>
<li>Space pilot pro</li>
<li>Space mouse pro</li>
<li><strong>Spacemouse wireless (USB cable) (TESTED)</strong></li>
<li>Spacemouse wireless receiver</li>
<li><strong>Spacemouse pro wireless (TESTED)</strong></li>
<li>Spacemouse pro wireless receiver</li>
<li>Spacemouse enterprise</li>
<li><strong>Spacemouse compact (TESTED)</strong></li>
<li>Spacemouse module</li>
<li>Nulooq</li>
<li><strong>3Dconnexion universal receiver (TESTED)</strong></li>
</ul>
<div class="tip-callout">On Windows &amp; Mac OS use the 3D connexion driver dialog to configure your device.<br />
On Linux, press <strong>Ctrl + M</strong> while in the platter view to open 3Dconnexion settings dialog.</p>
<p>If you're unable to configure your device, enable <strong>Configuration - Preferences - Enable support for legacy 3D connexion devices</strong>. You might have to do this even for relatively new devices, due to lack of support from 3Dconnexion. Then press CTRL+M (Shift+Command+M on Mac).</p>
</div>
<div>
<p style="text-align: center;"><img decoding="async" loading="lazy" style="display: block; margin-left: auto; margin-right: auto;" src="https://cdn.help.prusa3d.com/wp-content/uploads/3DConnexion.png" sizes="100vw" srcset="https://cdn.help.prusa3d.com/wp-content/uploads/3DConnexion-300x300.png 300w, https://cdn.help.prusa3d.com/wp-content/uploads/3DConnexion-400x400.png 400w" alt="" width="393" height="393"><em>3Dconnexion SpaceMouse</em></p>
</div>
<div>
<h3>Windows</h3>
</div>
<div>
<p>It is enough to plug-in any of the listed devices to the pc to have it working.</p>
</div>
<div>
<p>The current implementation does not support flipping axes in the 3dconnexion driver on Windows.</p>
<h3>Mac</h3>
</div>
<div>
<p>It is enough to plug-in any of the wired listed devices to have it working.</p>
</div>
<div>
<p>3Dconnexion universal receiver is currently not working on Mac.</p>
</div>
<div>
<h3>Linux</h3>
</div>
<div>
<p>Linux users need to create a file named “<strong>90-3dconnexion.rules</strong>” with the following content:</p>
</div>
<div>
<div>
<pre># Logitech vendor devices</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c603", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c605", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c606", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c621", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c623", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c625", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c626", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c627", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c628", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c629", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c62b", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c62e", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c62f", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c631", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c632", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c633", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c635", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c636", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c640", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="046d", ATTRS{idProduct}=="c652", MODE="0666"</pre>
</div>
</div>
<div>
<div>
<pre># 3D Connexion vendor devices</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c603", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c605", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c606", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c621", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c623", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c625", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c626", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c627", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c628", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c629", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c62b", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c62e", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c62f", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c631", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c632", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c633", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c635", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c636", MODE="0666"</pre>
</div>
<div>
<pre>KERNEL=="hidraw<em>", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c640", MODE="0666"</em></pre>
</div>
<div>
<pre>KERNEL=="hidraw", ATTRS{idVendor}=="256f", ATTRS{idProduct}=="c652", MODE="0666"</pre>
</div>
</div>
<div>
<p>and save it into:</p>
</div>
<div>
<pre>/etc/udev/rules.d</pre>
</div>
<div>
<p>After this is done, it is enough to plug-in any of the listed devices to the pc to have it working.</p>
</div>
<div>
<p>The cited file is part of the PrusaSlicer distribution. You can find it in: <strong>&lt;PrusaSlicerRoot&gt;resourcesudev90-3dconnexion.rules</strong></p>
</div>
<div>&nbsp;</div>
</div>


3Dconnexion devices

<p dir="ltr">Exporting the sliced model as OBJ can be useful if you’re familiar with a 3D modeling and rendering program. When you slice a model, you can choose <strong>File - Export - Export toolpath as OBJ</strong>. You can then import that file into a 3D software that you like, such as Blender, and render photorealistic previews or even animations of the print.</p>
<p dir="ltr">The export includes everything you currently see in the Preview. That means, if you use the layer slider to preview a cross-section of the model, the exported file will include only the layers visible in the Preview.</p>
<div class="tip-callout">If you plan to render only the outside of the sliced model, we recommend turning the infill off completely, keeping the layer height above 0,15 mm, and decreasing the number of perimeters to 2 in order to reduce the polygon count. Still, you can expect several million polygons per model.</div>
<p dir="ltr"><img decoding="async" src="https://cdn.help.prusa3d.com/wp-content/uploads/buddy_render.jpg" sizes="100vw" srcset="https://cdn.help.prusa3d.com/wp-content/uploads/buddy_render-300x169.jpg 300w, https://cdn.help.prusa3d.com/wp-content/uploads/buddy_render-600x338.jpg 600w, https://cdn.help.prusa3d.com/wp-content/uploads/buddy_render-768x432.jpg 768w, https://cdn.help.prusa3d.com/wp-content/uploads/buddy_render-800x450.jpg 800w" alt=""></p>
<p dir="ltr">Render of exported toolpath created in Blender 2.8</p>


Export toolpaths as OBJ

<p>By default, PrusaSlicer places the bottom-most point of each object on the build plate.</p>
<p>In the vast majority of cases, this saves the user time and prevents possible failed prints, where the model would be accidentally slightly lifted above the print bed. However, in some cases, you might want to lift an object above the print bed on purpose. For example, you might want to add a logo or text on top of another object.</p>
<p>The way to do it currently is to use a&nbsp;<strong>multi-part object</strong>. Only the bottom-most part of a multi-part object will be placed on the build plate. Other parts can be lifted from the build plate freely.</p>
<h3>Load the "levitating" object as a part</h3>
<ol>
<li><strong>Right-click</strong> an existing object in the 3D View</li>
<li>Select <strong>Add part - Load object..</strong> (or select any of the basic primitives from the list)</li>
<li>Select the <a href="https://help.prusa3d.com/en/article/move-rotate-scale-tools_1914"><strong>Move</strong> <strong>tool</strong></a> from the left menu</li>
<li>Move the part wherever you want it (or use the <a href="http://help.prusa3d.com/article/object-manipulation-panel_1757">Object manipulation panel</a> to enter precise values)</li>
</ol>
<p><video autoplay="autoplay" loop="loop" controls="controls" width="925" height="auto"><source src="https://cdn.help.prusa3d.com/wp-content/uploads/2021/08/lift_object.mp4" type="video/mp4"></video> &nbsp;</p>
<h3>Merge multiple objects</h3>
<p>You can also create a multi-part object by merging multiple objects together</p>
<ol>
<li>Select multiple objects (Use box selection or Ctrl+left mouse button click to add an object to current selection)</li>
<li><strong>Right-click</strong> any of the models</li>
<li>Select&nbsp;<strong>Merge</strong></li>
<li>Select individual part using the Object list</li>
<li>Select the <strong><a href="http://help.prusa3d.com/article/move-rotate-scale-tools_1914">Move tool</a></strong> from the left menu</li>
<li>Move the part wherever you want it (or use the <a href="http://help.prusa3d.com/article/object-manipulation-panel_1757">Object manipulation panel</a> to enter precise values)</li>
</ol>
<h4>Selecting individual parts</h4>
<p>When you click on a multi-part object in the 3D view, all parts will be selected. Use the <a href="http://help.prusa3d.com/article/object-list_1758">Object list</a> in the right panel to select individual parts.</p>
<div class="embed-container" style="position: relative; padding-bottom: 56.25%; height: 0; overflow: hidden; max-width: 100%;"><iframe style="position: absolute; top: 0; left: 0; width: 100%; height: 100%;" src="https://www.youtube.com/embed/NAW2JR-D_QU?start=3246" frameborder="0" allowfullscreen="allowfullscreen"></iframe></div>
<h3>Why don't we simply allow lifting objects up?</h3>
<p>Contrary to other slicers, PrusaSlicer slices each object independently and it also builds supports for each object independently. This approach is beneficial in many ways, it allows us to do tricks like variable layer height, support stepping independently per object or reslicing only part of the scene when a parameter changes to save time. On the other hand, it also means that objects, and more importantly, supports from two separate objects can collide. Placing one object on top of another and enabling supports would counterintuitively build supports through the bottom object, which would be difficult to see in the preview and ruin the print. Indeed, intersecting supports for objects placed close together is relatively frequently reported as a bug even now.</p>
<p>In addition, the assumption "objects are not floating" is present in many places of the codebase, and there is no simple way to simply allow lifting objects up without breaking many of the existing features.</p>
<p>To summarize, in order to enable this in the future, we will also have to implement:</p>
<ol>
<li>Collision detection on the plater. We already have the infrastructure in PrusaSlicer for that.</li>
<li>Collision of supports from different objects.</li>
</ol>
<p>With that, the user will get meaningful feedback if the print is not printable (floating in mid-air or having overlapping extrusions) Implementing all of this will be fairly difficult. With some more requested tasks from the community having a higher priority for us, we have no estimated deadline for implementing this.</p>


How to lift object from the print bed

<p>This is a list of variables available in custom G-Code macro language in PrusaSlicer. The macro language is described in detail in a <a href="http://help.prusa3d.com/article/macros_1775">separate page</a>.</p>
<h3>Placeholders for configuration options</h3>
<p>Each configuration option can be used in <strong>all of your custom G-Codes and output filename template</strong>. The identifier of the respective placeholder is shown in a tooltip when you hover the config option in parameter tabs:</p>
<p><img decoding="async" src="https://cdn.help.prusa3d.com/wp-content/uploads/2022/02/2022-02-03-212205_1920x1080_scrot.png" sizes="(min-width: 1024px) 820px, 100vw" srcset="https://cdn.help.prusa3d.com/wp-content/uploads/2022/02/2022-02-03-212205_1920x1080_scrot-600x304.png 600w, https://cdn.help.prusa3d.com/wp-content/uploads/2022/02/2022-02-03-212205_1920x1080_scrot-800x405.png 800w, https://cdn.help.prusa3d.com/wp-content/uploads/2022/02/2022-02-03-212205_1920x1080_scrot-300x152.png 300w, https://cdn.help.prusa3d.com/wp-content/uploads/2022/02/2022-02-03-212205_1920x1080_scrot-768x389.png 768w, https://cdn.help.prusa3d.com/wp-content/uploads/2022/02/2022-02-03-212205_1920x1080_scrot.png 1600w" alt="" width="1055" height="534" loading="lazy" /></p>
<p>That is, using <em>{layer_height}</em> in a custom G-Code would expand into <em>0.15</em>.</p>
<h3>Placeholders available in all custom G-Codes</h3>
<p>There are additional placeholders available <strong>in all custom G-Codes</strong>:</p>
<p>current_extruder<br />current_object_idx<br />day<br />filament_preset<br />first_layer_print_convex_hull<br />first_layer_print_max<br />first_layer_print_min<br />first_layer_print_size<br />has_single_extruder_multi_material_priming<br />has_wipe_tower<br />hour<br />initial_extruder<br />initial_tool<br />input_filename<br />input_filename_base<br />is_extruder_used<br />minute<br />month<br />num_instances<br />num_objects<br />physical_printer_preset<br />print_bed_max<br />print_bed_min<br />print_bed_size<br />print_preset<br />printer_preset<br />scale<br />second<br />timestamp<br />total_layer_count<br />total_toolchanges<br />year</p>
<p> </p>
<h3>Custom G-Code specific placeholders</h3>
<p>There are extra placeholders only available in certain custom G-Codes. See the table below for an overview.</p>
<table style="border-collapse: collapse; width: 100%; border-style: solid; height: 176px;" border="1">
<tbody>
<tr style="height: 36.6667px;">
<td style="width: 22.0403%; height: 36.6667px;"> </td>
<td style="width: 13.4761%; height: 36.6667px;">Toolchange</td>
<td style="width: 13.602%; height: 36.6667px;">Before layer</td>
<td style="width: 13.2254%; height: 36.6667px;">After Layer</td>
<td style="width: 13.097%; height: 36.6667px;">Filament Start</td>
<td style="width: 11.7128%; height: 36.6667px;">Filament End</td>
<td style="width: 12.8463%; height: 36.6667px;">End</td>
</tr>
<tr style="height: 29.3333px;">
<td style="width: 22.0403%; height: 29.3333px;">next_extruder</td>
<td style="width: 13.4761%; background-color: #2dc26b; height: 29.3333px; text-align: center;">✓</td>
<td style="width: 13.602%; background-color: #e03e2d; height: 29.3333px; text-align: center;">✗</td>
<td style="width: 13.2254%; background-color: #e03e2d; height: 29.3333px; text-align: center;">✗</td>
<td style="width: 13.097%; background-color: #e03e2d; height: 29.3333px; text-align: center;">✗</td>
<td style="width: 11.7128%; background-color: #e03e2d; height: 29.3333px; text-align: center;">✗</td>
<td style="width: 12.8463%; background-color: #e03e2d; height: 29.3333px; text-align: center;">✗</td>
</tr>
<tr style="height: 18.3333px;">
<td style="width: 22.0403%; height: 18.3333px;">previous_extruder</td>
<td style="width: 13.4761%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
<td style="width: 13.602%; background-color: #e03e2d; height: 18.3333px; text-align: center;">✗</td>
<td style="width: 13.2254%; background-color: #e03e2d; height: 18.3333px; text-align: center;">✗</td>
<td style="width: 13.097%; background-color: #e03e2d; height: 18.3333px; text-align: center;">✗</td>
<td style="width: 11.7128%; background-color: #e03e2d; height: 18.3333px; text-align: center;">✗</td>
<td style="width: 12.8463%; background-color: #e03e2d; height: 18.3333px; text-align: center;">✗</td>
</tr>
<tr style="height: 18.3333px;">
<td style="width: 22.0403%; height: 18.3333px;">toolchange_z</td>
<td style="width: 13.4761%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
<td style="width: 13.602%; background-color: #e03e2d; height: 18.3333px; text-align: center;">✗</td>
<td style="width: 13.2254%; background-color: #e03e2d; height: 18.3333px; text-align: center;">✗</td>
<td style="width: 13.097%; background-color: #e03e2d; height: 18.3333px; text-align: center;">✗</td>
<td style="width: 11.7128%; background-color: #e03e2d; height: 18.3333px; text-align: center;">✗</td>
<td style="width: 12.8463%; background-color: #e03e2d; height: 18.3333px; text-align: center;">✗</td>
</tr>
<tr style="height: 18.3333px;">
<td style="width: 22.0403%; height: 18.3333px;">max_layer_z</td>
<td style="width: 13.4761%; background-color: #f8cac6; height: 18.3333px; text-align: center;">from ver. 2.6</td>
<td style="width: 13.602%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
<td style="width: 13.2254%; background-color: #f8cac6; height: 18.3333px; text-align: center;">from ver. 2.6</td>
<td style="width: 13.097%; background-color: #f8cac6; height: 18.3333px; text-align: center;">from ver. 2.6</td>
<td style="width: 11.7128%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
<td style="width: 12.8463%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
</tr>
<tr style="height: 18.3333px;">
<td style="width: 22.0403%; height: 18.3333px;">layer_num</td>
<td style="width: 13.4761%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
<td style="width: 13.602%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
<td style="width: 13.2254%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
<td style="width: 13.097%; background-color: #f8cac6; height: 18.3333px; text-align: center;">from ver. 2.6</td>
<td style="width: 11.7128%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
<td style="width: 12.8463%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
</tr>
<tr style="height: 18.3333px;">
<td style="width: 22.0403%; height: 18.3333px;">layer_z</td>
<td style="width: 13.4761%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
<td style="width: 13.602%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
<td style="width: 13.2254%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
<td style="width: 13.097%; background-color: #f8cac6; height: 18.3333px; text-align: center;">from ver. 2.6</td>
<td style="width: 11.7128%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
<td style="width: 12.8463%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
</tr>
<tr style="height: 18.3333px;">
<td style="width: 22.0403%; height: 18.3333px;">filament_extruder_id</td>
<td style="width: 13.4761%; background-color: #e03e2d; height: 18.3333px; text-align: center;">✗</td>
<td style="width: 13.602%; background-color: #e03e2d; height: 18.3333px; text-align: center;">✗</td>
<td style="width: 13.2254%; background-color: #e03e2d; height: 18.3333px; text-align: center;">✗</td>
<td style="width: 13.097%; background-color: #f8cac6; height: 18.3333px; text-align: center;">from ver. 2.6</td>
<td style="width: 11.7128%; background-color: #2dc26b; height: 18.3333px; text-align: center;">✓</td>
<td style="width: 12.8463%; background-color: #e03e2d; height: 18.3333px; text-align: center;">✗</td>
</tr>
</tbody>
</table>
<p> </p>
<p> </p>
<h3>Output filename format FDM</h3>
<p>The macro language can be used in Output filename format field available in Print Settings -&gt; Output options. In this context you can use all the configuration placeholders plus the following:</p>
<p>day<br />extruded_volume<br />filament_preset<br />hour<br />initial_extruder<br />initial_filament_type<br />initial_tool<br />input_filename<br />input_filename_base<br />minute<br />month<br />normal_print_time<br />num_extruders<br />num_instances<br />num_objects<br />num_printing_extruders<br />physical_printer_preset<br />print_preset<br />print_time<br />printer_preset<br />printing_filament_types<br />scale<br />second<br />silent_print_time<br />timestamp<br />total_cost<br />total_toolchanges<br />total_weight<br />total_wipe_tower_cost<br />total_wipe_tower_filament<br />used_filament<br />version<br />year</p>
<p> </p>
<h3>Output filename format SLA</h3>
<p>You can use all configuration options placeholders plus the following:</p>
<p>day<br />hour<br />input_filename<br />input_filename_base<br />minute<br />month<br />num_instances<br />num_objects<br />objects_used_material<br />print_time<br />scale<br />second<br />support_used_material<br />timestamp<br />total_cost<br />total_weight<br />version<br />year</p>


List of placeholders

PrusaSlicer - Printables.com integration

Comments

Still have questions?
