How to update firmware (MINI/MINI+)

Menu

How to update firmware (MINI/MINI+)

How to update firmware (MINI/MINI+)
Relevant for:
MINIMINI+
Last updated 2 years ago
How to update firmware (MINI/MINI+)
 Difficulty
Very easy
 Steps
9
 Available languages
CSPLDEJAESITFR

Step 3 Copying the new firmware

Copying the new firmware
Copying the new firmware
⬢Insert the USB flash drive into your computer.
⬢Drag & drop the unzipped file prusa3d_fw_4_x_x_MINI.bbf to the root directory on the USB flash drive.
Make sure you don't have another installation (.bbf) file on the USB flash drive. G-codes and other files don't matter.

Step 4 Flashing the new firmware

Flashing the new firmware
Flashing the new firmware
Flashing the new firmware
⬢Turn the printer ON.
⬢Insert the USB flash drive to the printer.
⬢Push the reset button.
The printer will check automatically if a new firmware is available on the USB flash drive.

Step 5 Flashing the new firmware

Flashing the new firmware
Flashing the new firmware
Flashing the new firmware
Flashing the new firmware

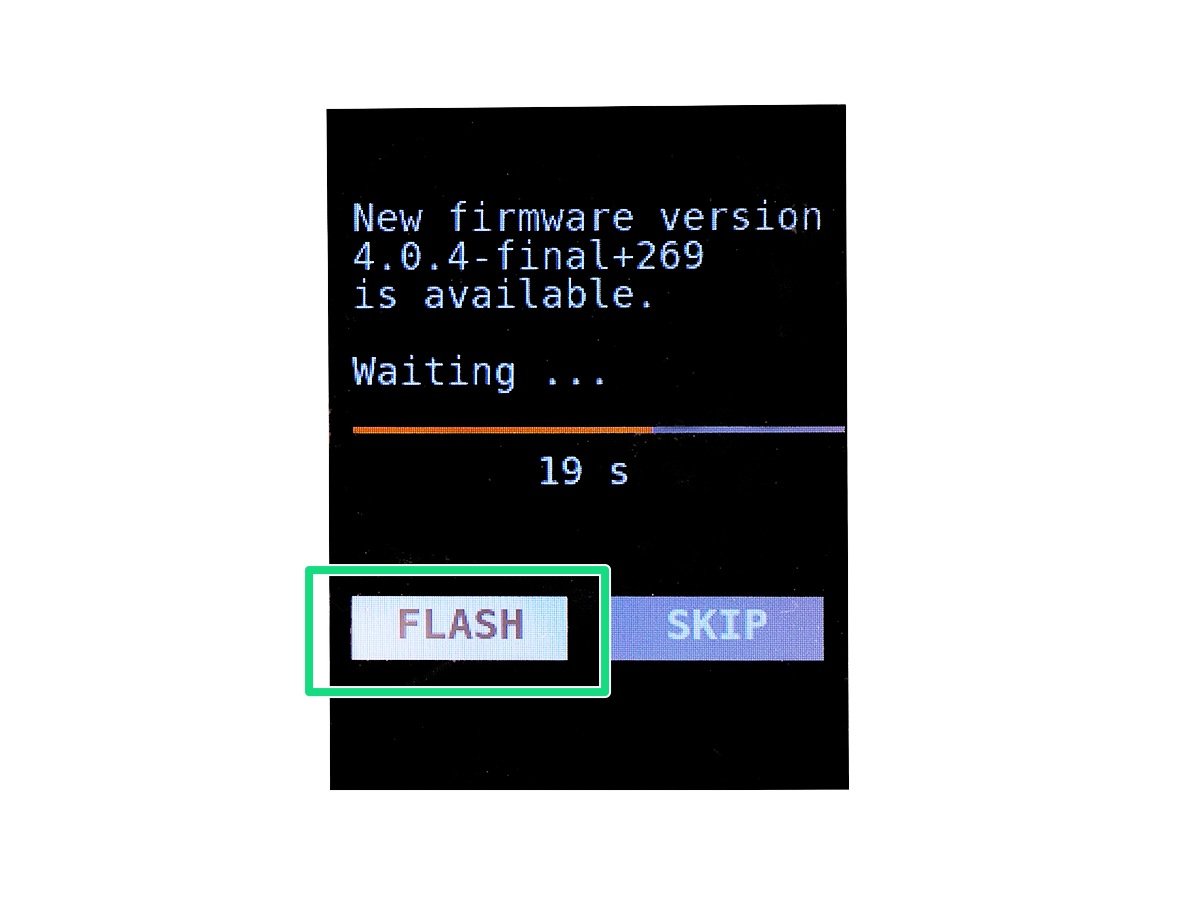

⬢Using the selector-knob press "FLASH" button on the LCD screen.
⬢Wait until the process is completed.
Do not remove the USB flash-drive during the installation! This can fatally damage the electronics.
⬢When the process is successfully completed, the printer will finish the boot and you will see the Home screen.
⬢We are done here! Your printer with the new firmware is ready to rock ;)
If the printer repeatedly boots to the home screen without showing the firmware update screen, please try to reformat your USB drive or try a different one.

Step 7 Copying the older firmware

Copying the older firmware
Copying the older firmware
⬢Insert the USB flash drive to your computer.
⬢Drag & drop the unzipped file prusa3d_fw_4_x_x_MINI.bbf to the root directory on the USB flash drive.
Make sure you don't have another installation  file on the USB flash drive. G-codes and other files don't matter.

Step 8 Flashing the old firmware

Flashing the old firmware
Flashing the old firmware
Flashing the old firmware
Flashing the old firmware
⬢Insert the USB flash drive to the printer.
⬢Turn the printer ON.
⬢Push the reset button.
⬢Immediately press and hold the selector-knob for 1-2 seconds. It must be released before the "Verifying" screen appear! When you release the button, you will be prompted to flash.
The printer automatically checks for firmware on the USB flash drive.

Step 9 Flashing the old firmware

Flashing the old firmware
Flashing the old firmware
Flashing the old firmware
Flashing the old firmware
⬢Using the selector-knob press "FLASH" button on the LCD screen.
⬢Wait until the process is completed.
Do not remove the USB flash-drive during the installation! This can fatally damage the electronics.
⬢When the process is successfully completed, the printer will finish the boot and you will see the Home screen.
⬢We are done here! Your printer is ready ;)
If the printer repeatedly boots to the home screen without showing the firmware update screen, please try to reformat your USB drive or try a different one.
