⬢We are pleased that you have purchased the SL1 to SL1S SPEED Upgrade kit for your printer. Let's get started.

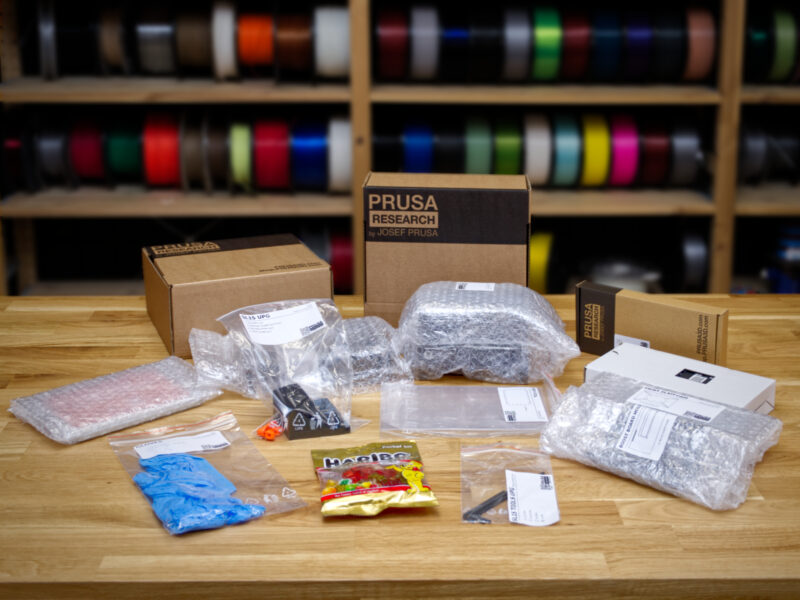

⬢Please prepare the upgrade kit received from Prusa Research.
⬢The SL1S upgrade kit is available at the e-shop.
EN
Login- Čeština
- Español
- Italiano
- Deutsch
- Polski
- Français
- 日本語
1. Introduction
Menu
- Original Prusa SL1 to SL1S SPEED upgrade
- 1. Introduction
- 1. Preparing the upgrade kit
- 2. What will be updated?
- 3. What will be updated?
- 4. Getting the necessary tools
- 5. Labels guide
- 6. Use labels for reference
- 7. View high resolution images
- 8. We are here for you!
- 9. Important: Electronics protection
- 10. Special symbols
- 11. Let's build!
- 2. Disassembling the SL1
- 3. Upgrading to SL1S SPEED
- 4. Firmware upgrading
- 5. Calibrating the printer
- 6. First print
- 7. Manual changelog
1. Introduction
Relevant for:
Last updated 2 years ago Difficulty
Very easy Steps
11 Available languages
⬢SL1 upgrade to SL1S SPEED includes changes to:
⬢Monochromatic print display
⬢New UV LED assembly
⬢Boost board
The list continues in the next step...
⬢SL1 upgrade to SL1S SPEED includes changes to:
⬢Print platform
⬢Resin tank
⬢For this upgrade you will need:
⬢T9 Torx key (1x)
⬢2.0mm Allen key (1x)
⬢2.5mm Allen key (1x)
⬢3.0mm Allen key (1x)
No soldering is required. No wire crimping is required.
⬢All the boxes and bags including parts for the build are labeled.
⬢Most parts have a picture on the label for better orientation and correct component recognition.
⬢Fasteners on the labels has a scale of 1:1 and can be used to identify parts :-)
The numbers in parentheses below the fastener picture indicate the number of extra pieces added to the SPARE package.
⬢For the most common screws and nuts you can also use the enclosed letter, which contains Prusa Cheatsheet on the other side.
You can download it from our site help.prusa3d.com/cheatsheet. Print it at 100 %, don't rescale it, otherwise, it won't work.
When you browse the guide on help.prusa3d.com, you can view the original images in high resolution for clarity.
⬢Just hover your cursor over the image and click the Magnifier button ("View original") in the top left corner.
⬢Lost in the instructions? Missing screw or cracked printed part? Let us know!
⬢You can contact us using following channels:
⬢Using comments under each step.
⬢Using our 24/7 live chat at shop.prusa3d.com
⬢Writing an email to [email protected]
WARNING: Make sure to protect the electronics against electrostatic discharge (ESD). Always unpack the electronics right before you need them!
⬢Here are some tips to prevent damage to the electronics:
⬢Keep the electronics inside the ESD bag right until you are asked to install them.
⬢Always touch the sides of the board while manipulating with it. Avoid touching the chips, capacitors and other parts of the electronics.
⬢Before you touch the electronics use any conductive (steel) structure nearby to electrostatically discharge yourself.
⬢Be extra cautious in the rooms with carpets, which are a source of electrostatic energy.
⬢Wool clothing and certain synthetic fabrics can easily gather static electricity. It is safer to wear cotton clothing.
WARNING: This device utilizes UV light, which can harm your eyesight or skin. Do not turn the device ON until it is fully reassembled with all the covers installed!!!
According to some pictures in the instructions, it may be more difficult to orient yourself. For these cases, we have added symbols to show the direction of the view in such steps.
⬢For example, the second picture shows that you have to look inside the printer from above.
⬢We have not added the symbol in the pictures where the direction of view is clear.
Note: Do not throw away any screws removed during the disassembly. Some screws will be reused later on.
Make sure that the printer is clean. This means there is no spilled resin or hardened resin, remove dust and any grease.
We do not recommend disposing of any removed electronics (e.g., print display, power supply). If you ever want to downgrade your printer for some reason, you will need these parts.
Some parts on your printer may differ from the pictures in the manual. The SL1 printer has undergone several changes during its time. Mostly it's just a different look. It should have no effect on the procedure.
⬢Are you ready to upgrade your SL1?
⬢Start with disassembling your printer step by step. Go to chapter 2. Disassembling the SL1
