Prusa CORE One
CORE One conversion kit (1.00)
3. Back assembly | Tools necessary for this chapter
1. Tools necessary for this chapter
Step 1 of 54 (Chapter 6 of 13)
Contents
Comments
⬢
For this chapter, please prepare:
⬢

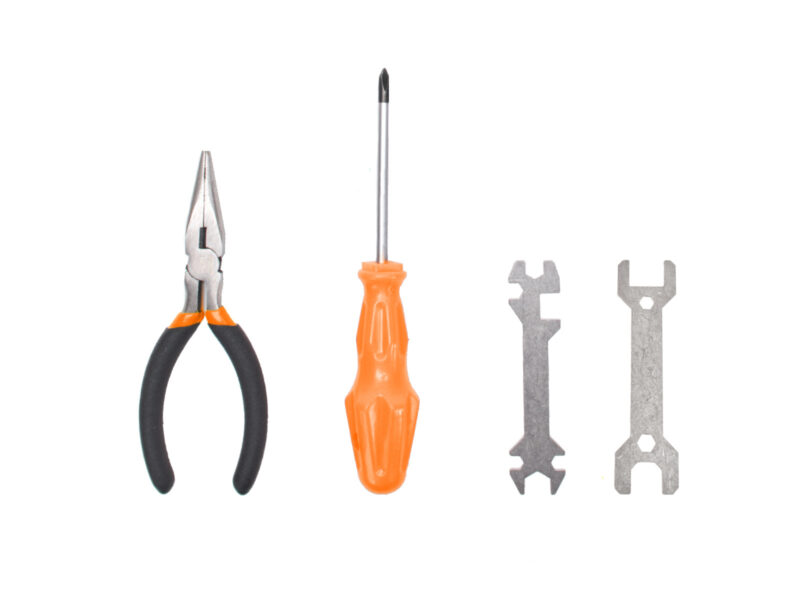

Philips (PH2) screwdriver
⬢
Needle-nose pliers
⬢

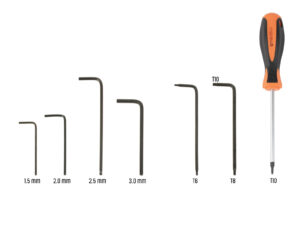

2.5mm Allen key
⬢
T10 torx key / T10 torx screwdriver
