4. First run
 Difficulty
Moderate
 Steps
31
 Available languages
ENCSPLDEESITFR

Step 1 Before you start with Multi-Tool

Before you start with Multi-Tool
Before you start with Multi-Tool
This chapter shows a brief description of the wizard. Please note that the screenshots are illustrative and might differ from those in the firmware.
Make sure you are running Firmware 5.1.2 or newer
You can download firmware updates HERE. Guide for updating the firmware is HERE
Some parts of the wizard must be done multiple times, this depends on the number of tool-heads. For example:
Dock Calibration
Loadcell calibration
Filament sensor calibration

Step 2 Preparing the printer

Preparing the printer
Preparing the printer
Make sure that the printer is placed in a stable place where no ambient vibrations are transmitted (for example, where other printers are printing).
From the rear side of the printer, plug in the PSU cable.
Turn the power switch ON (symbol "I").

Step 3 Nozzle seal heigh calibration

Nozzle seal heigh calibration
Nozzle seal heigh calibration
Nozzle seal heigh calibration
On the Nozzle seal heigh calibration steps were used docked Nextruder without the printer for better visibility, proceed next steps on your printer. Do not dismantle the docks.
In the next step, we'll calibrate the height of the nozzle seal.

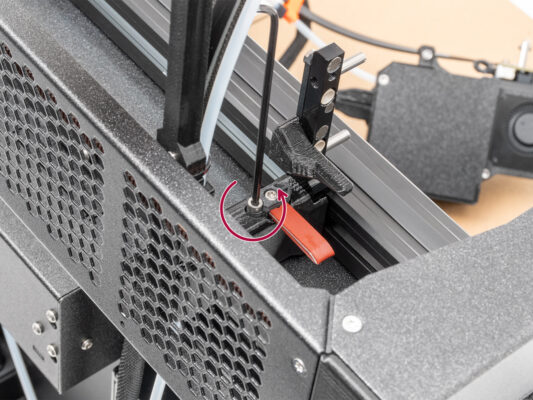

Using the 2.5 mm Allen key, tighten or untighten the M3x30 screw to calibrate the height of the nozzle seal.
Proceed to the next step.

Step 4 Nozzle seal heigh calibration

Nozzle seal heigh calibration
Nozzle seal heigh calibration
Nozzle seal heigh calibration
Nozzle seal heigh calibration
If is the Nozzle seal too low or too high, we need to reposition its height.
Using a 2.5 mm Allen key:
Turn the M3x30 screw clockwise to set the Nozzle seal lower.
Turn the M3x30 screw counterclockwise to set the Nozzle seal higher.
The correct position of the Nozzle seal is, that the Nozzle seal isn't bent and it is touching the nozzle.

Step 5 Wizard

Wizard
Wizard
Wizard
After the printer starts up, the screen prompts for the printer test and setup wizard.
The wizard will test all important components of the printer. The whole process takes a few minutes. Some parts of the wizard require direct user interaction. Follow the instruction on the screen.
NOTE: While testing the axes, make sure that there is nothing in the printer that is obstructing the movement of the axes.
WARNING: Do not touch the printer during the wizard unless prompted! Some parts of the printer may be HOT and moving at high speed.

Step 6 Wizard: Dock Position Calibration

Wizard: Dock Position Calibration
Wizard: Dock Position Calibration
Wizard: Dock Position Calibration
You will need:
Universal wrench (1x)
Mini wrench (1x)

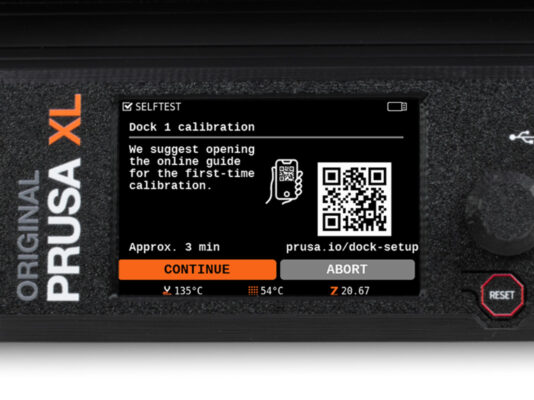

Dock calibration will guide you through how to properly calibrate the position of individual tool heads on the printer.
It is necessary to follow every step in the dock calibration properly! Do not rush, read every step twice, then proceed with the instruction.

Step 7 Wizard: Loosen pin

Wizard:  Loosen pin
Wizard:  Loosen pin
Wizard:  Loosen pin
Follow the wizard instructions on the screen.
Using a Mini wrench, loosen and remove both dock pins on Dock 1.

Step 8 Wizard: Loosen screws

Wizard: Loosen screws
Wizard: Loosen screws
Wizard: Loosen screws
Follow the wizard instructions on the screen.
Using a Uni wrench, loosen two screws. A few turns are enough.

Step 9 Wizard: Lock the tool

Wizard: Lock the tool
Wizard: Lock the tool
Wizard: Lock the tool
Wizard: Lock the tool
Follow the wizard instructions on the screen.
Manually move the Tool changing mechanism to the first tool.
Manually lock the metal bars as described in the picture.
The tool has to be locked in the tool changer.

Step 10 Wizard: Tighten the upper screw

Wizard: Tighten the upper screw
Wizard: Tighten the upper screw
Wizard: Tighten the upper screw
Follow the wizard instructions on the screen.

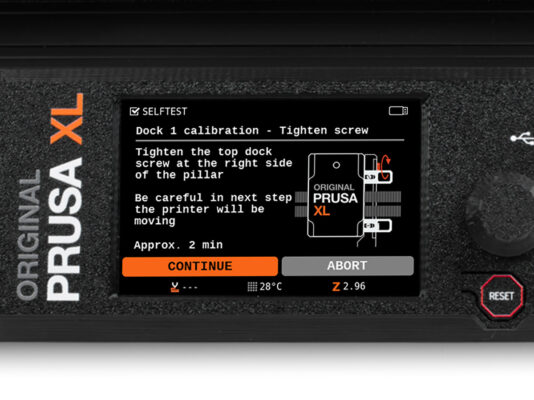

Using a Uni wrench, tighten the upper screw on a side of the dock.
After confirming by the continue button on the LCD, the XY axis will leave the dock with the tool. Clear the space.

Step 12 Wizard: Install pins

Wizard: Install pins
Wizard: Install pins
Wizard: Install pins
Follow the wizard instructions on the screen.

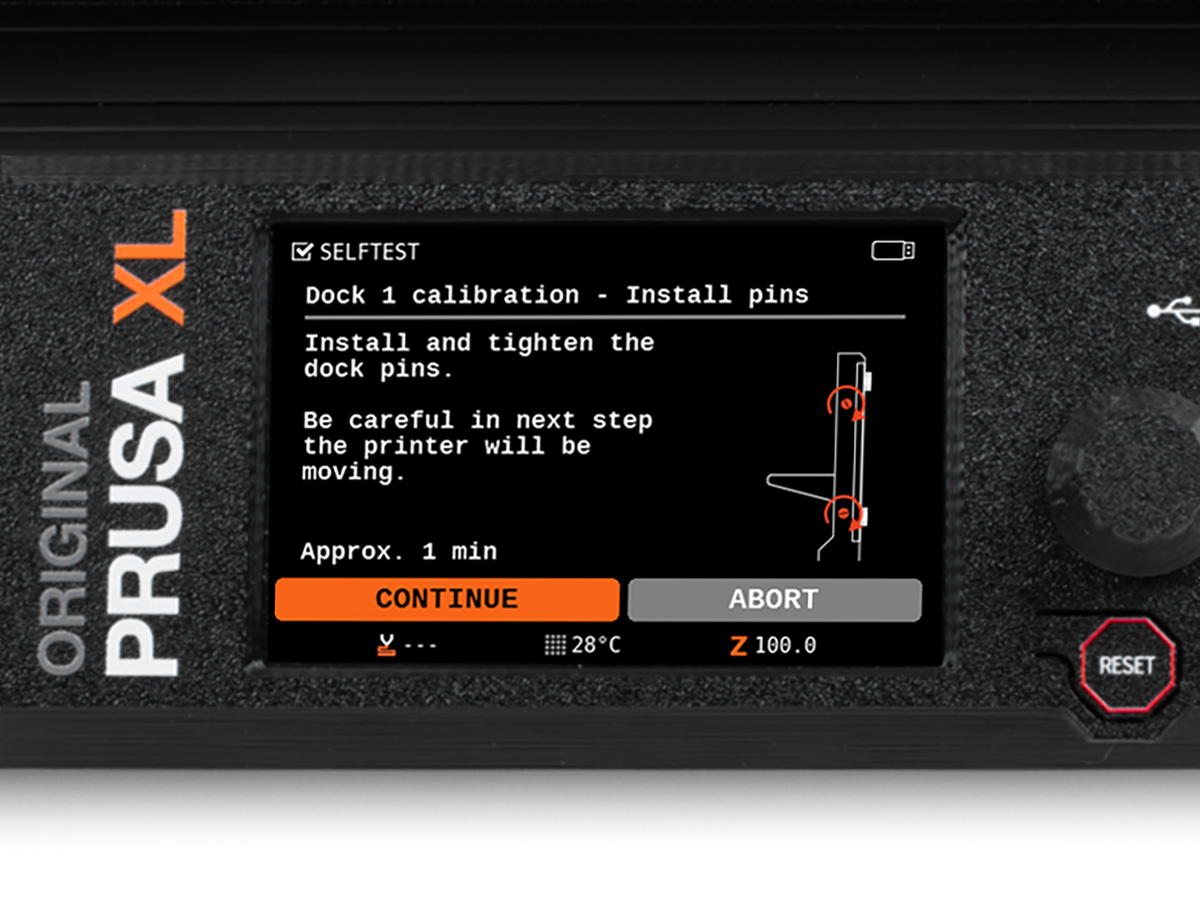

Insert the two metal pins and tighten them with a Mini wrench.
After clicking on the continue button on the LCD, the printer will put back the tool into the dock1 and do a few calibration moves.
After the Dock1 calibration, proceed to the Dock2 calibration and repeat the steps.

Step 14 Wizard: Test Loadcell

Wizard: Test Loadcell
Wizard: Test Loadcell
Wizard: Test Loadcell
Wizard: Test Loadcell
The next step of the wizard will prompt you to touch the nozzle to test and calibrate the Loadcell. During this procedure, the parts of the printer are not heated, you can touch the parts of the printer. Click on Continue.
Do not touch the nozzle yet, wait until prompted with the message: Tap the nozzle NOW.
Slightly tap the nozzle. No need to use extra force. In case the Loadcell does not detect enough touch, you will be prompted to repeat the step. Otherwise, you will see Loadcell test passed OK when it succeeds.

Step 15 Nozzle diameter confirmation

Nozzle diameter confirmation
Nozzle diameter confirmation
Nozzle diameter confirmation
Nozzle diameter confirmation
In the next step of the wizard, the printer will ask you for the diameter of your nozzle.
Count the marking (dots) on your nozzle in the Nextruder.
Select the option:
3 dots - 0.40 mm nozzle
4 dots - 0.60 mm nozzle
Note that if you change the nozzle diameter, you will need to change the settings on the printer.

Step 16 Wizard: Calibrate Filament Sensors

Wizard: Calibrate Filament Sensors
Wizard: Calibrate Filament Sensors
Wizard: Calibrate Filament Sensors

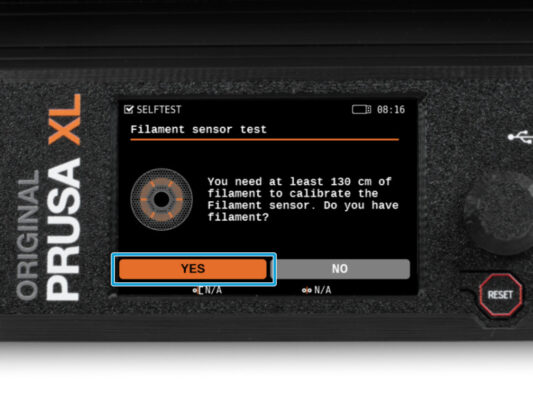

During the calibration of the filament sensors, you will be prompted to use at least 130 cm of filament. Hint: Use the Prusament shipped with your printer and hang it directly on the spool holder.
When you have prepared the filament, click on YES.

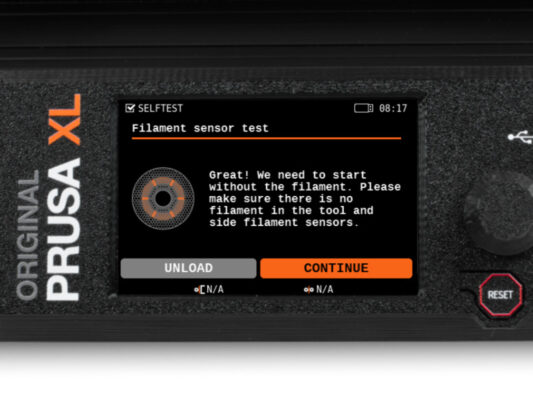

Wait for the printer to prompt you to insert the filament into the side filament sensor.

Step 17 Wizard: Calibrate Filament Sensors

Wizard: Calibrate Filament Sensors
Wizard: Calibrate Filament Sensors
Wizard: Calibrate Filament Sensors
Wizard: Calibrate Filament Sensors
Now, insert the filament into the side filament sensor and push it until it reaches the filament sensor in the extruder (you will feel a slight resistance).

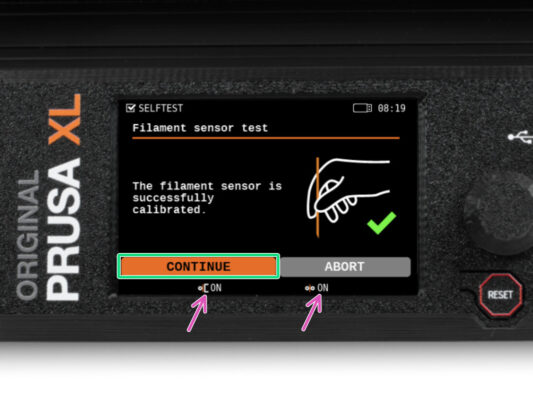

You can check the side filament sensor (left) and extruder filament sensor (right) status on the bottom bar on the screen.
Both filament sensors are successfully calibrated and tested. Click on CONTINUE.
According to the number of print heads, the filament sensor calibration is repeated.

Step 19 Calibration pin: parts assembly

Calibration pin: parts assembly
Calibration pin: parts assembly
Calibration pin: parts assembly

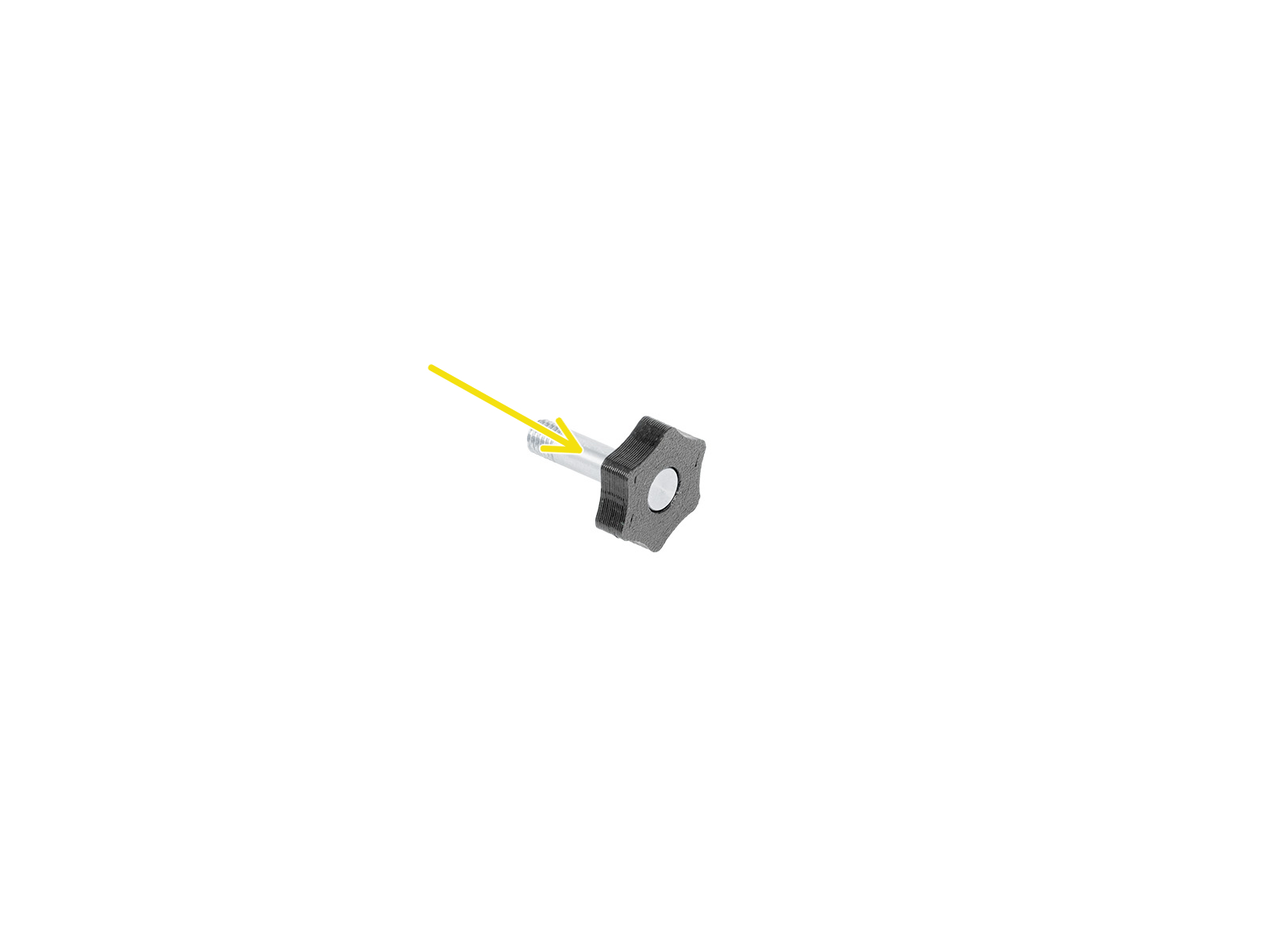

Insert the calibration pin into the plastic part.
Push the pin into the plastic part, so it will make a small gap on top.
Well done, the pin is prepared.

Step 20 Wizard: Tool Offset Calibration

Wizard: Tool Offset Calibration
Wizard: Tool Offset Calibration
Wizard: Tool Offset Calibration
During offset calibration, you will need to screw the calibration pin into the center of the heatbed.
Click on Continue to start the Tool Offsets Calibration.
Calibration pin (1x)

Step 21 Wizard: Sheet install

Wizard: Sheet install
Wizard: Sheet install
Wizard: Sheet install
Follow the wizard instructions on the screen.

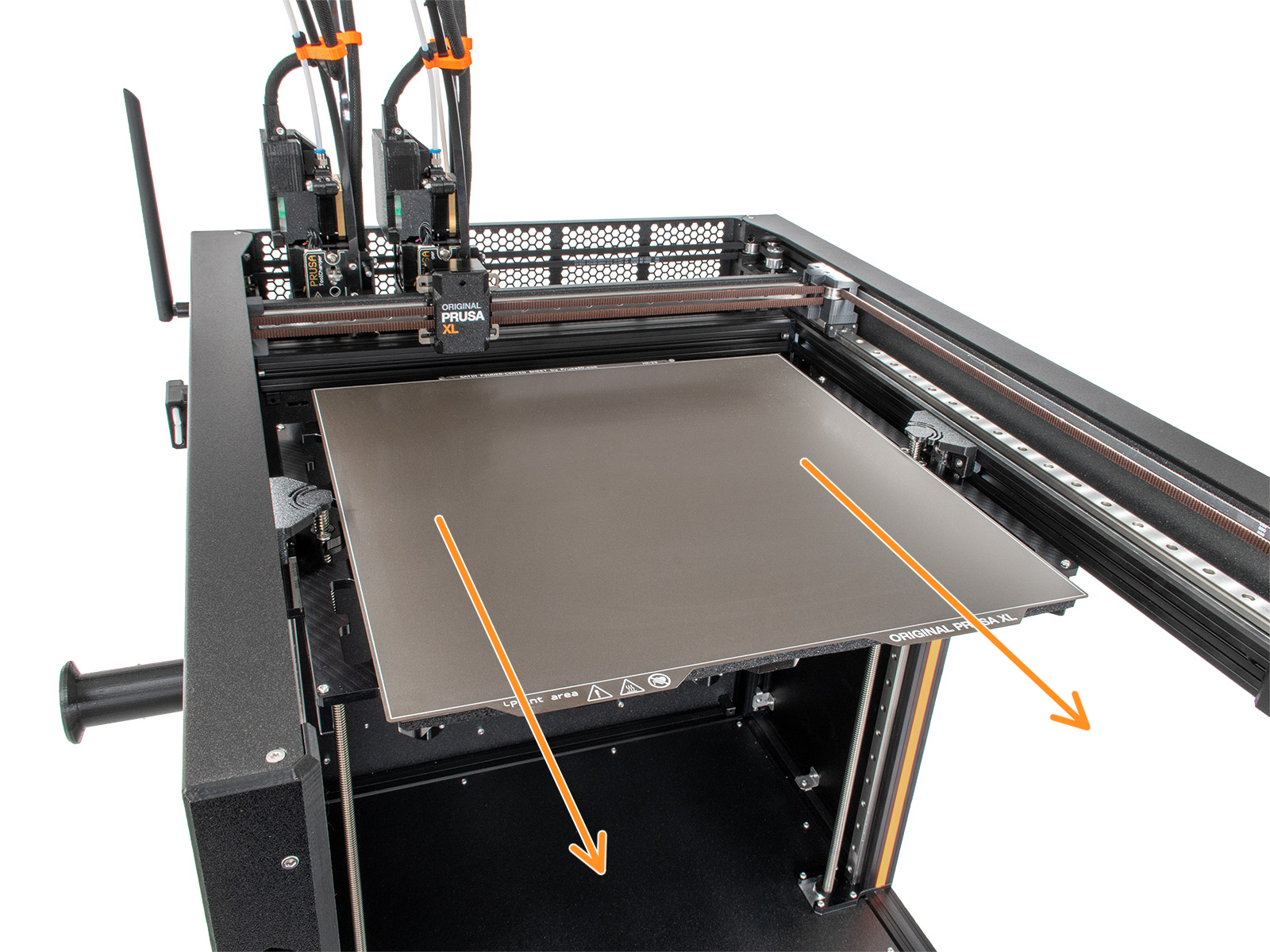

Put the steel sheet on a heatbed.
Now, the printer starts short calibration.

Step 22 Wizard: Calibration pin installation

Wizard: Calibration pin installation
Wizard: Calibration pin installation
Wizard: Calibration pin installation
Wizard: Calibration pin installation
Follow the wizard instructions on the screen.
Take off the steel sheet from the heatbed.
Tighten the calibration pin into the middle of the heatbed. Turn the pin clockwise. The pin has not move!
Now, the printer will calibrate both tool heads.

Step 23 Wizard: Offset calibration done

Wizard: Offset calibration done
Wizard: Offset calibration done
Wizard: Offset calibration done
Wizard: Offset calibration done
Follow the wizard instructions on the screen.
Untighten the calibration pin from the heatbed and take it off. Rotate counterclockwise.
Place the steel sheet on a heatbed.
The printer will finish the calibration.
Good job! The Offset calibration is done.

Step 25 Semi-Assembled version only - Checking the Heatbed installation

Semi-Assembled version only - Checking the Heatbed installation
Semi-Assembled version only - Checking the Heatbed installation
Semi-Assembled version only - Checking the Heatbed installation
Semi-Assembled version only - Checking the Heatbed installation
In this step, we will make sure the Heatbed is installed correctly
Using the T10 screwdriver, slightly loosen all screws on the sides of the bed-frame. A few turns are enough.
Visit the menu Control > Move Axis and adjust the Move Z value to the lowest position.
Leave the heatbed for a few seconds until it settles in the lowest position.
While in the lowest position, tighten all screws using the T10 screwdriver.

Step 26 It's done

It's done
It's done
That's all, the printer is ready to print. But still, follow the instructions in this manual to the end.

Step 27 Regular printer maintenance

Regular printer maintenance
Regular printer maintenance
Regular printer maintenance
Regular printer maintenance
To keep your printer working properly over time, it is highly recommended to do regular maintenance.
For regular printer maintenance, follow the Regular printer maintenance (XL) article for information and instructions.
On multi-tool printers, it is necessary to focus on lubricating the coupler pins of the ToolHeads.
Lubricating the coupler pins can be made along with the rest of the maintenance, or it can also be done if you notice that your prints have banding or ringing issues.
To lubricate the coupler pins use our dedicated online guide How to lubricate the coupler pins on Original Prusa XL.
You will need to print an applicator to lubricate the pins. Please refer to the dedicated guide for more information.

Step 29 Printable 3D models

Printable 3D models
Printable 3D models
Congratulations! You should be ready to print by now ;-)
You can start by printing some of our test objects bundled on the included USB stick - you can check them out Printables.

Step 30 Prusa knowledge base

Prusa knowledge base
Prusa knowledge base
もし何か問題が発生した場合は、都度help.prusa3d.comナレッジベースで確認するようにしてください。
私たちは毎日新しいトピックを追加しています!

Step 31 Join Printables!

Join Printables!
Join Printables!
Join Printables!
Join Printables!

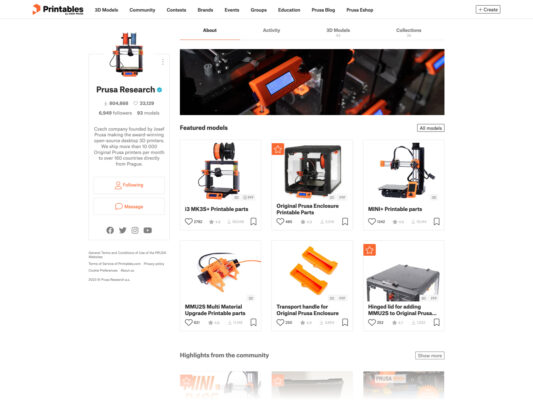

Don't forget to join the biggest Prusa community! Download the latest models in STL or G-code tailored for your printer. Register at Printables.com

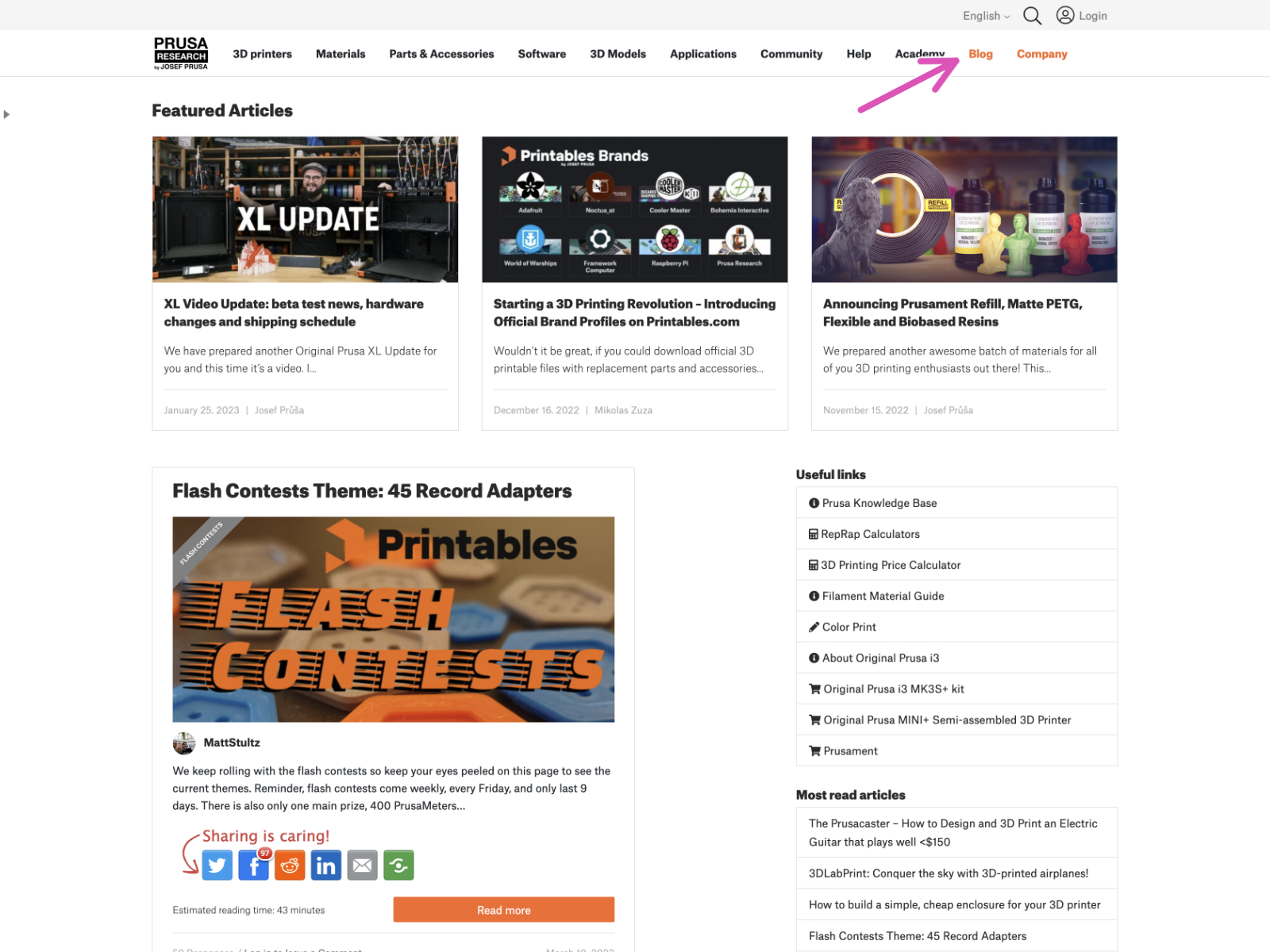

新しいプロジェクトのインスピレーションが必要な時は、ぜひ毎週更新されるブログをご覧ください。
組み立てにヘルプが必要な場合には、フォーラムの素晴らしいコミュニティをご利用ください :-)
