フィラメントをアンロードできない(MMU1)
Menu
フィラメントをアンロードできない(MMU1)
Relevant for:
Last updated 9 months ago Difficulty
Moderate Steps
4 Available languages
⬢In case filament is stuck in cooling tube pull cooling tube from filament using gentle force.
⬢If filaments can not be removed using gentle force use lighter to slightly warm cooling tube and using pliers pull cooling tube from filament.
⬢フィラメントを使用して、フィラメントがPTFEチューブに抵抗なく通過できることを確認します。
You should be able to freely insert at least 60 mm of filament.
⬢4つの項目をすべてチェックすること。
⬢Remove screw holding multiplexer in place.
⬢Slide multiplexer up to pull out filament from nozzle.
Pre-heat nozzle in case filament is stuck in nozzle.

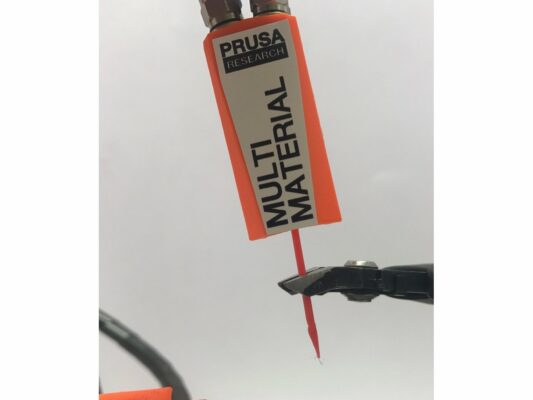

⬢フィラメントの端を切ります。
⬢Assemble multiplexer and unload filament.
