9. プリフライト確認

9. プリフライト確認

9. プリフライト確認
Relevant for:
Last updated 2 months ago
9. プリフライト確認
 Difficulty
Easy
 Steps
9
 Available languages
ENCSPLESDEITFR

Step 1 P.I.N.D.A の調整 (パート 1)

P.I.N.D.A の調整 (パート 1)
P.I.N.D.A の調整 (パート 1)
P.I.N.D.A の調整 (パート 1)
P.I.N.D.A の調整 (パート 1)
プリンターのスイッチが切られており、電源ケーブルが差し込まれていないことを確認してください。
エクストルーダーを動かしている間は、X軸 モーターは発電機として働きます。これにより、少量ながら電気が作り出され、LCDが点滅することがあります。エクストルーダーはできる限りゆっくりと動かし、今回以降は必ずプリンターのコントロール機能を使用するようにしてください。
エクストルーダーを、手で一番左まで動かします。

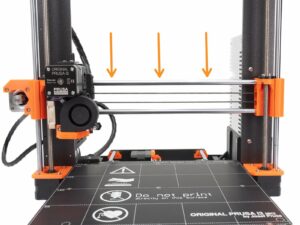

Z軸の 両方 の台形ネジを同時に回転させて、ヒートベッドに当たるまでノズルを移動します。それぞれのロッドは均等に回してください!

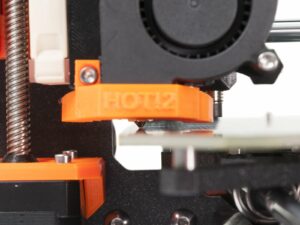

別の角度から見て、ノズルがヒートベッドに少しだけ触れていることを確認してください。ヒートベッドは曲げないようにしてください!
P.I.N.D.A. プローブの調整作業がすべて終わるまで、スチールシートは置かないでください。XYZキャリブレーションが終わるまでお待ちください。

Step 2 P.I.N.D.A の調整 (パート 2)

P.I.N.D.A の調整 (パート 2)
P.I.N.D.A の調整 (パート 2)
P.I.N.D.A の調整 (パート 2)

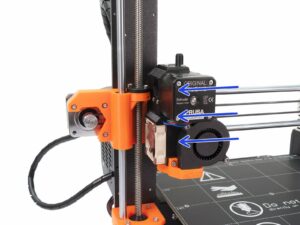

エクストルーダーを、慎重に一番右まで動かします。
Make sure that the nozzle is not scratching the surface during the movement! If it does, rise the right side of the X-axis by rotating the right Z motor slightly clockwise.
If an adjustment is needed, you can lower the nozzle height by rotating the right Z motor counter-clockwise.

Step 3 P.IN.D.A. adjustment (part 3)

P.IN.D.A. adjustment (part 3)
P.IN.D.A. adjustment (part 3)
P.IN.D.A. adjustment (part 3)
P.IN.D.A. adjustment (part 3)
エクストルーダーを、X軸の中心に動かします。
パッケージから結束バンドを取り、SuperPINDA センサーの下に置きます。結束バンドの先端ではなく、中心を使います。
P.I.N.D.A. センサー を固定しているネジを緩め、センサーを結束バンドにやさしく押し当てます。
P.I.N.D.A. ホルダー を再度ネジで固定します。
!!! DO NOT use glue to fix P.I.N.D.A. probe in the new type of holder with the M3 screw, you won't be able to release it again !!!
P.I.N.D.A. センサー と ノズル の高さの差は、最後の写真のようになっている必要があります。

Step 5 組み立て時によくある失敗

組み立て時によくある失敗
組み立て時によくある失敗
お客様から返却されたプリンターの検査結果をもとに、プリントクオリティを低下させる原因となる、様々な原因をリストにまとめました。こちらのリストを確認して、より良い3Dプリントを行いましょう!
Check the video here: https://youtu.be/Lsa-PXAXdKY
その他 Tips やチュートリアルは次のリンクからご確認ください: help.prusa3d.com

Step 6 最初のプリントに向けたクイックガイド

最初のプリントに向けたクイックガイド
最初のプリントに向けたクイックガイド
最初のプリントに向けたクイックガイド
See our free 3D Printing Handbook - https://www.prusa3d.com/3dhandbookMK3
Read the chapters 3.2 Disclaimer and 3.3 Safety instructions
Read the chapter 6.3 Setup before printing.
Download and install the drivers - chapter 9 Printer drivers. Don't forget we have ready to print settings for Slic3r PE.
Calibrate the printer by following the chapter 6.3.1 Calibration flow and wizard. Please follow the steps exactly, otherwise you can permanently damage the print surface!

Step 7 Printable 3D models

Printable 3D models
Printable 3D models
Read the chapter 7 Printing of 3D Printing Handbook.
Congratulations! You should be ready to print by now ;-)
同梱のSDカードに、いくつかのテストオブジェクトをご用意していますので、こちらを使ってすぐにプリントを始めることができます。これらのオブジェクトの情報は以下のリンクから確認できます。 prusa3d.com/printable-3d-models
