⬢2.5mm Allen key

⬢Needle-nose pliers

⬢Phillips screwdriver PH2

⬢Pocket knife or snap-off knife

⬢Push three magnets into the PSU-retainer.

⬢Screw two M3x12 screws with two standoffs into the PSU-holder. Do not tighten the screw completely! There must be 2-3 mm space between the screw head and the standoff.

⬢Insert two M3nS nuts into the PSU-handle. Use the 2.5 mm Allen key to completely push the nuts inside.

⬢Push two M3x12 screws through the holes in the PSU holder.

⬢Align the PSU-handle with the screws. Maintain the same orientation of the PSU-handle, like in the picture - see the pockets.

⬢Join the handle with PSU holder by tightening both M3x12 screws.

If you have purchased the Quick release cable add-on, you do not need to install this cover.

⬢Slide one end of the PSU holder cover into the opening in the PSU holder.

⬢Push on the other end into the opening. You should feel slightly "click" to ensure the part fits properly.

⬢Prepare the printer with the PSU. Place the PSU on the cloth.

⬢Align the open grooves in the PSU against the screws on the PSU holder.

⬢Slide the PSU on these screws and tighten the screws using a 2.5mm Allen key.

⬢On the PSU side, align the hole in the PSU holder with the hole in the PSU.

⬢Secure both parts with the M4x5r screw.

⬢Using the 6/32" screw, attach the PSU-retainer to the corner of the PSU as shown in the picture. Note the correct orientation of the parts.

⬢PSU-cover (1x) re-use the old part

⬢M3x10 screw (2x) re-use the old part

⬢Zip tie (1x)

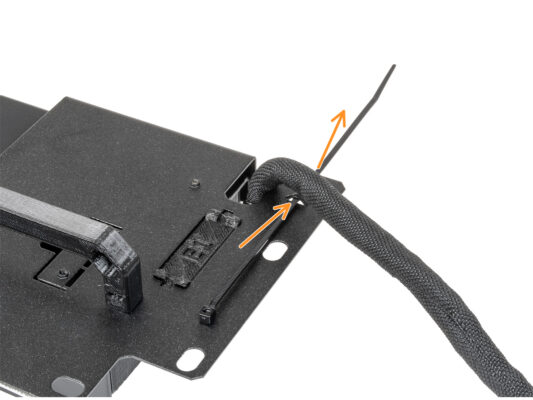

⬢Guide the PSU cable bundle through the opening in the PSU holder.

⬢From the rear side of the PSU holder, push the zip tie through the perforation on the holder.

⬢Tighten the zip tie around the PSU cable bundle.

⬢Carefully put the printer with the PSU aside for now. We will come back to it in a while.

⬢Ensure the PSU-locks are still turned at the same position:

⬢Place the PSU on the heatbed protected with the cloth.

⬢Turn it with the PSU-handle facing upwards.

⬢The PSU cable bundle must guide to the left.

⬢To get the printer into the enclosure, insert its left side first.

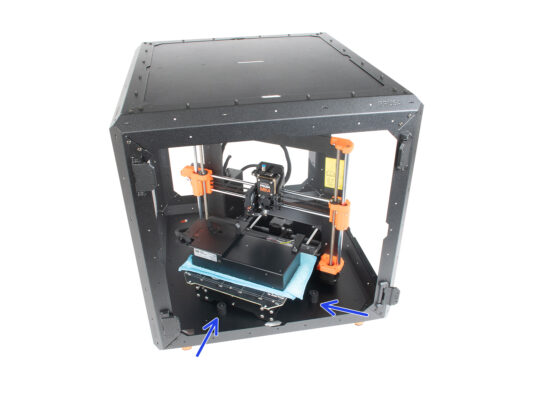

⬢Place the printer at an angle (as shown in the picture) in the enclosure behind the anti-slip dampers.

⬢Insert the PSU through the hole at the bottom of the back panel. Start by pushing through the part with the PSU-retainer (the part with the magnets).

⬢Tilt the PSU towards the back panel. The PSU must be outside the enclosure and the PSU holder inside the enclosure.

⬢Turn all PSU-lock 90° to lock the PSU assembly.

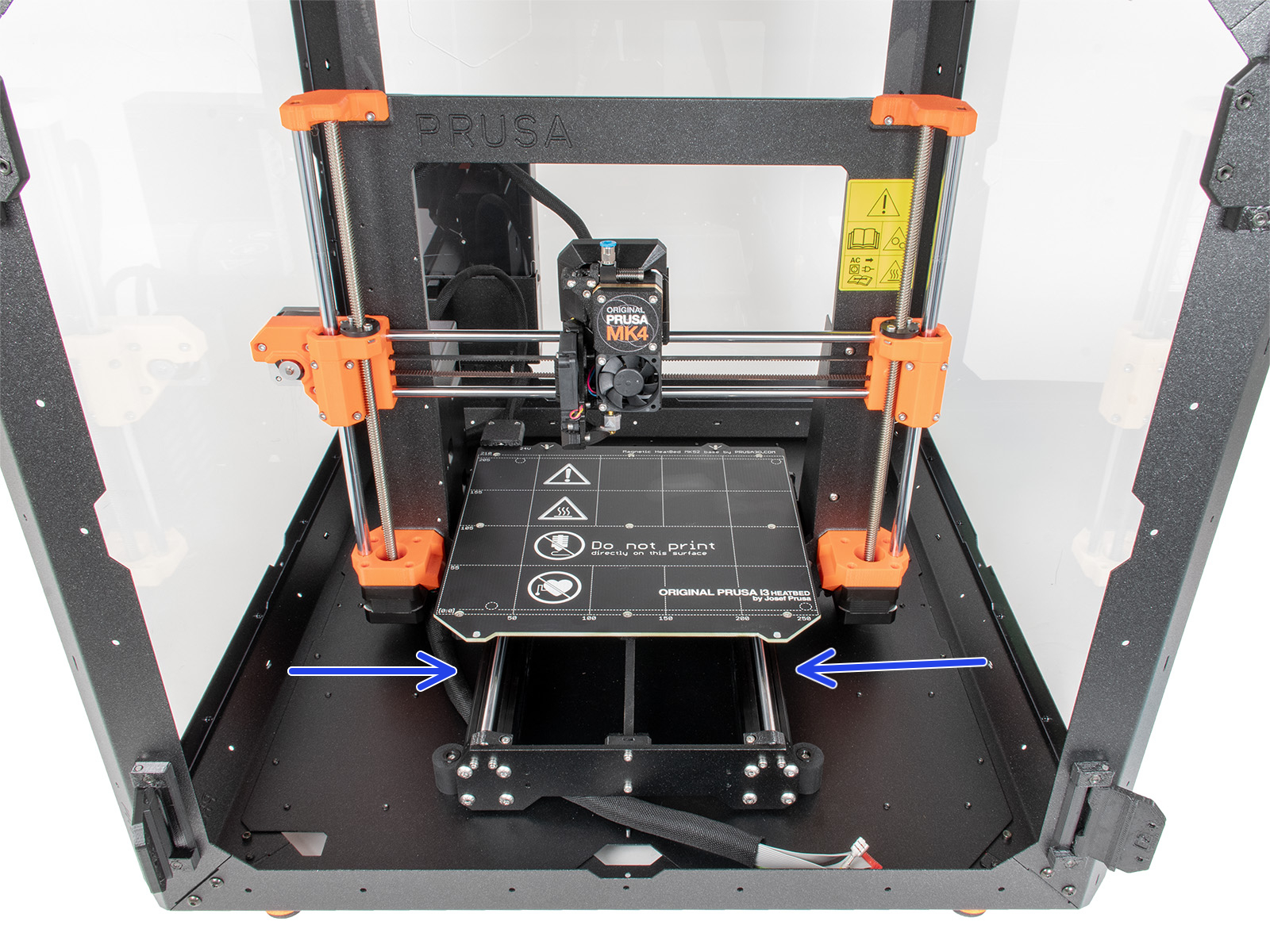

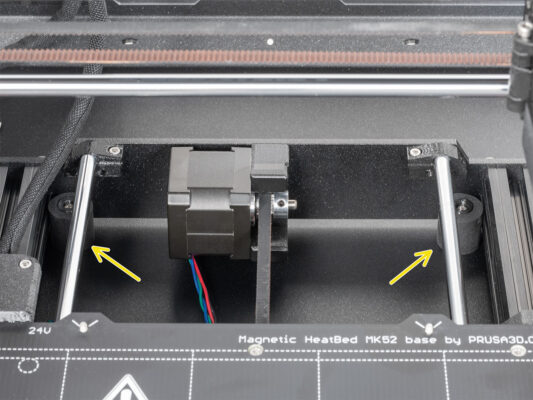

⬢Rearrange position of the printer like in the picture. Place it in the center of the enclosure and adjust the correct position:

⬢Guide the xLCD cable bundle under the printer from the electronics to the front side of the enclosure. Leave the cable free for now.

⬢For MK4S/3.9S users:

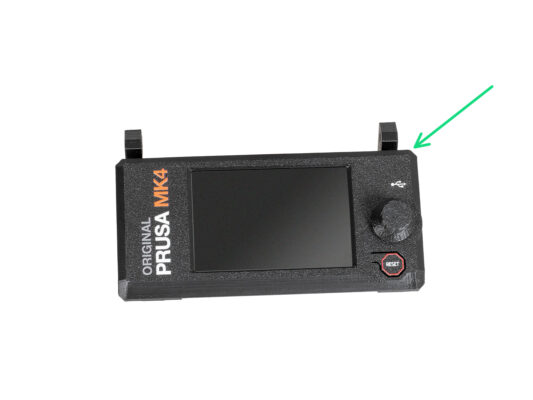

⬢MK4S xLCD assembly (1x)

⬢For MK4/3.9 users:

⬢xLCD assembly (1x)

⬢M3x8 screw (2x)

⬢Zip tie (2x)

⬢Guide the xLCD cable through the cutout in the bottom panel.

⬢Secure the textile sleeve on the cable bundle with the zip tie. Do not over tighten the zip tie, it may cut the cables!

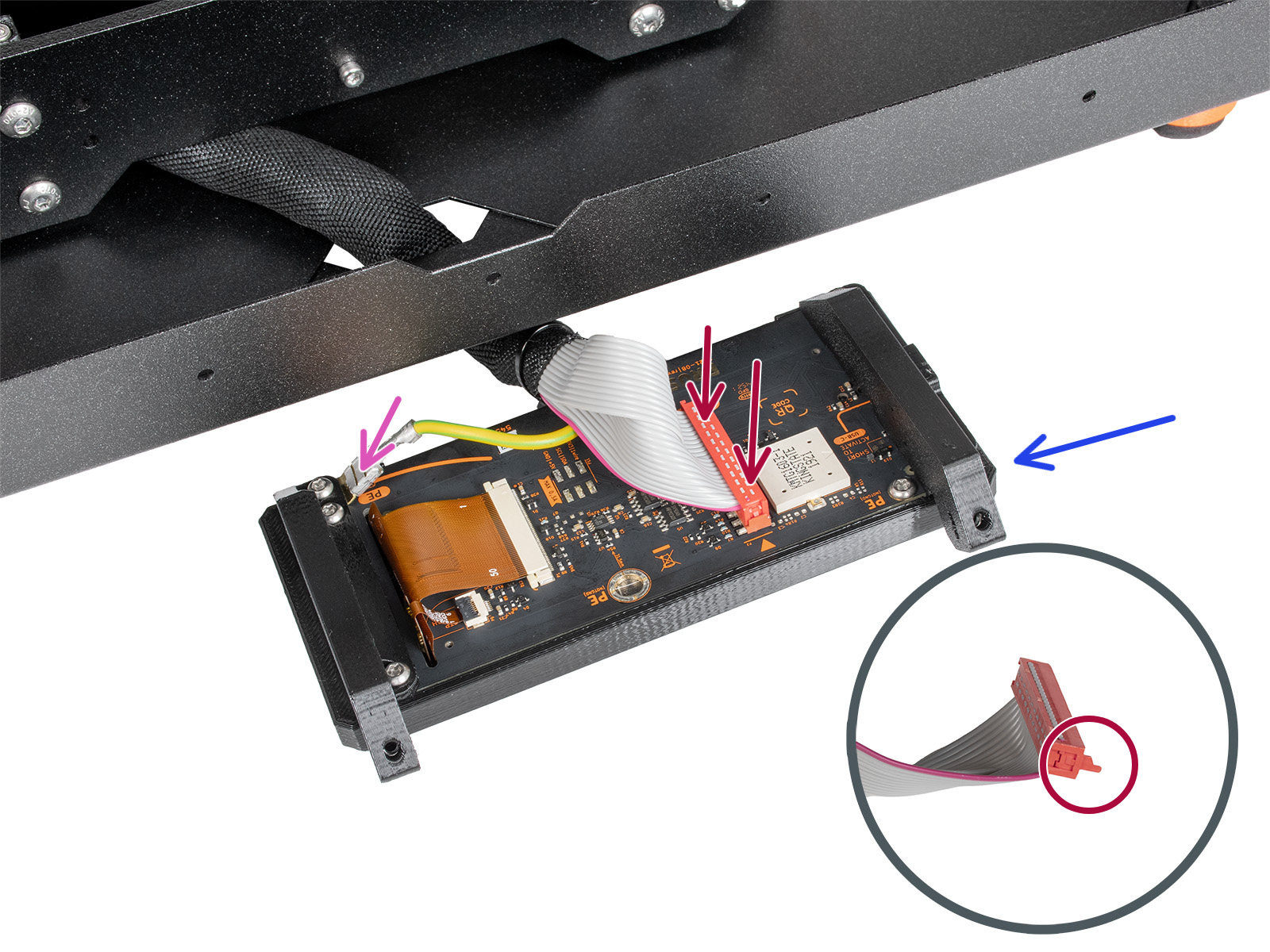

⬢Place the xLCD assembly close to the xLCD cables, like in the picture. Mind the same orientation of the xLCD as in the picture. See the xLCD-supports for better understanding.

⬢From the inside, push two M3x8 screws through the bottom profile.

⬢Slide the xLCD assembly onto the two M3x8 screws in the frame and tighten them.

⬢Guide the xLCD cable through the cutout in the bottom panel.

⬢Secure the textile sleeve on the cable bundle with the zip tie. Do not over tighten the zip tie, it may cut the cables!

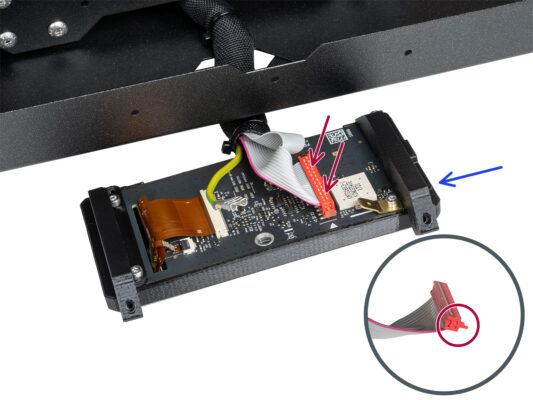

⬢Place the xLCD assembly close to the xLCD cables, like in the picture. Mind the same orientation of the xLCD as in the picture. See the xLCD-supports for better understanding.

⬢Guide the zip tie through the perforation in the bottom panel and under the xLCD cable bundle.

⬢Tighten the zip tie to secure the xLCD cable bundle. Do not over tighten the zip tie, it may cut the cables!

⬢Insert five M3n nuts into the Filament-guide-a.

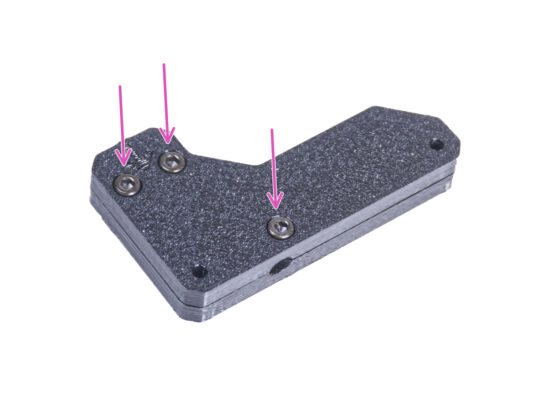

⬢Attach the Filament-guide-b on the Filament-guide-a part and join them together by three M3x8 screws. Do not tighten the screws completely, a few turns are enough for now.

⬢Slide the PTFE tube all the way into the hole in the filament guide. From the opposite side, check if the PTFE tube is completely inserted to the end. If not, slide the PTFE a little more. See the direction of the PTFE tube.

⬢Tighten all screws on the filament guide assembly. Do not overtighten the screws! Check that the filament passes easily through the PTFE!

⬢Align the holes in the filament guide and holes in the front-right top corner of the frame. See the orientation of the filament guide.

⬢Secure the filament guide to the frame with two M3x12 screws.

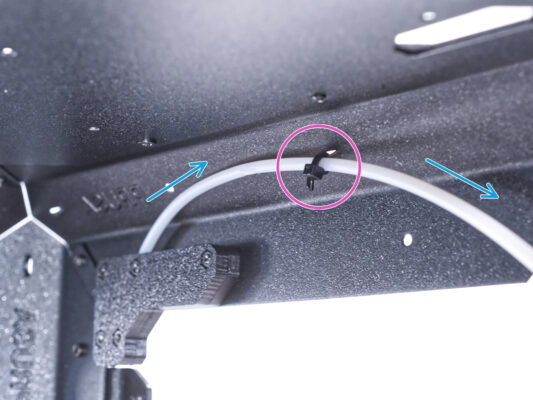

⬢Guide the PTFE tube to the front top right of the frame.

⬢Secure the tube with the zip tie to the frame.

⬢Insert the free end of the PTFE tube to the Fitting QSM-M5 on the extruder. Insert it all the way down.

⬢Insert two M3n nuts into the Thermometer-bracket.

⬢Pull out the plastic tab from the temperature sensor.

⬢Insert the temperature sensor in the Thermometer-bracket. Push on it by your thumbs until you feel a slight "click". Avoid pressing on the screen, you can damage it.

⬢From the inside, mount the thermometer to the top left corner. Secure it with two M3x8 screws.

⬢Door panel (2x)

⬢Door-magnet-a (2x)

⬢Door-magnet-b (2x)

⬢Door handle (2x)

⬢Door trim (2x)

The list continues in the next step...

⬢M3n nut (8x)

⬢M3x12 screw (4x)

⬢Magnet 20x6x2 (4x)

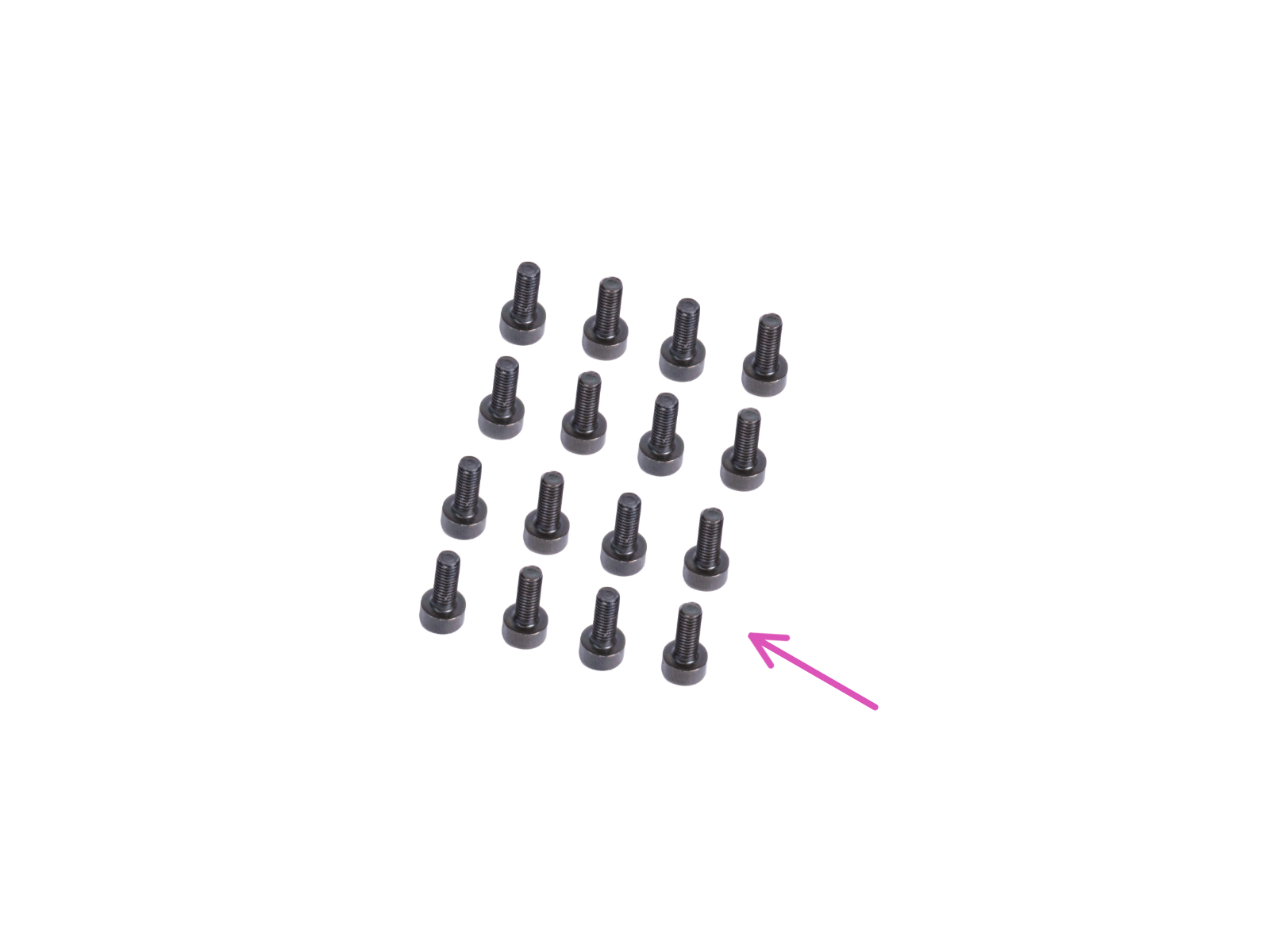

⬢M3x8 screw (16x)

⬢There is a pocket in each Door-magnet (A and B) part. Place the magnet close to the pocket. The polarity of the magnet is not important.

⬢Push the magnet all the way into the pocket.

⬢Insert two M3n nuts into each Door-magnet (A and B) part.

⬢There are protective foils on both sides of the panel. Peel off both foils.

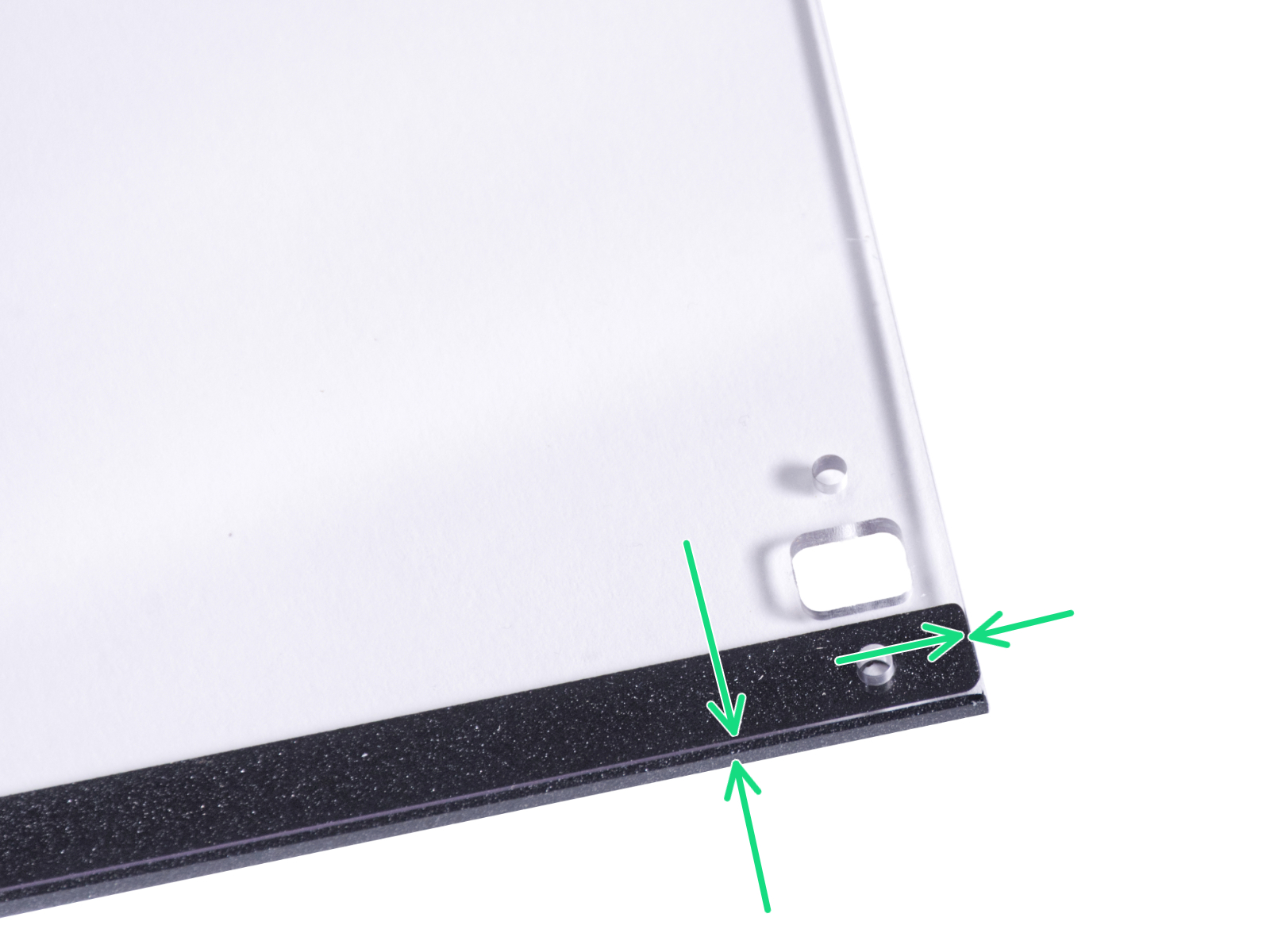

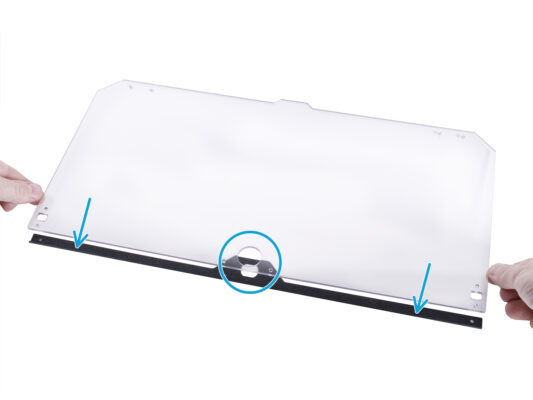

⬢Place the edge of the door panel on the door trim. Both sides of the panel are symmetrical. It doesn't matter which side you put it on the door trim. It is important that the circular hole is placed on the door trim.

⬢Align the edges of the door panel with both ends of the door trim.

⬢Proceed the same with the second door panel.

In the next step, we will need door-magnet-a and door-magnet-b. These parts are not the same! Both parts are marked with the letter "A" and "B" and have a different shape.

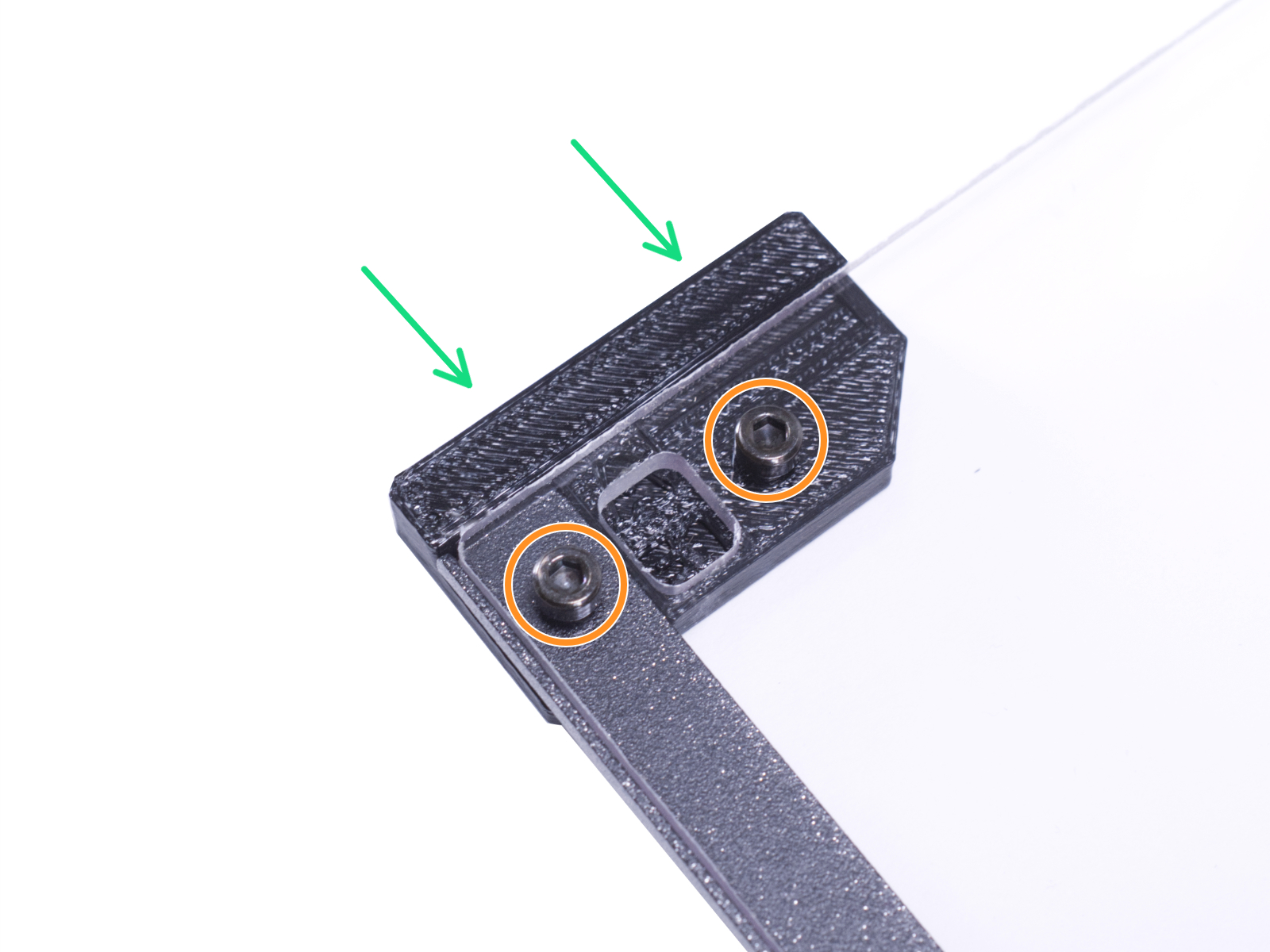

⬢Insert the door-magnet-a under the left side of the door trim and the door panel.

⬢Secure it with two M3x8 screws.

⬢Insert the door-magnet-b under the right side of the door trim and the door panel.

⬢Secure it with two M3x8 screws.

⬢Compare the final look of the panel.

⬢Proceed the same with the second door assembly.

⬢Insert two M3x12 screws through the holes in the door assembly. In the picture, notice from which side the screws are inserted.

⬢Place the Door-handle under the door assembly and align the holes with the screws.

⬢Join the parts together by tightening the M3x12 screws.

⬢Proceed the same with the second door assembly.

⬢Take one of the door assemblies and place it on the open hinges on the right side of the enclosure. Make sure the handle is on the outside of the panel.

⬢Secure the door assembly by tightening two M3x8 screws in each hinge.

⬢Take the second door assembly and place it on the open hinges on the left side of the enclosure. Make sure the handle is on the outside of the panel.

⬢Secure the door assembly by tightening two M3x8 screws in each hinge.

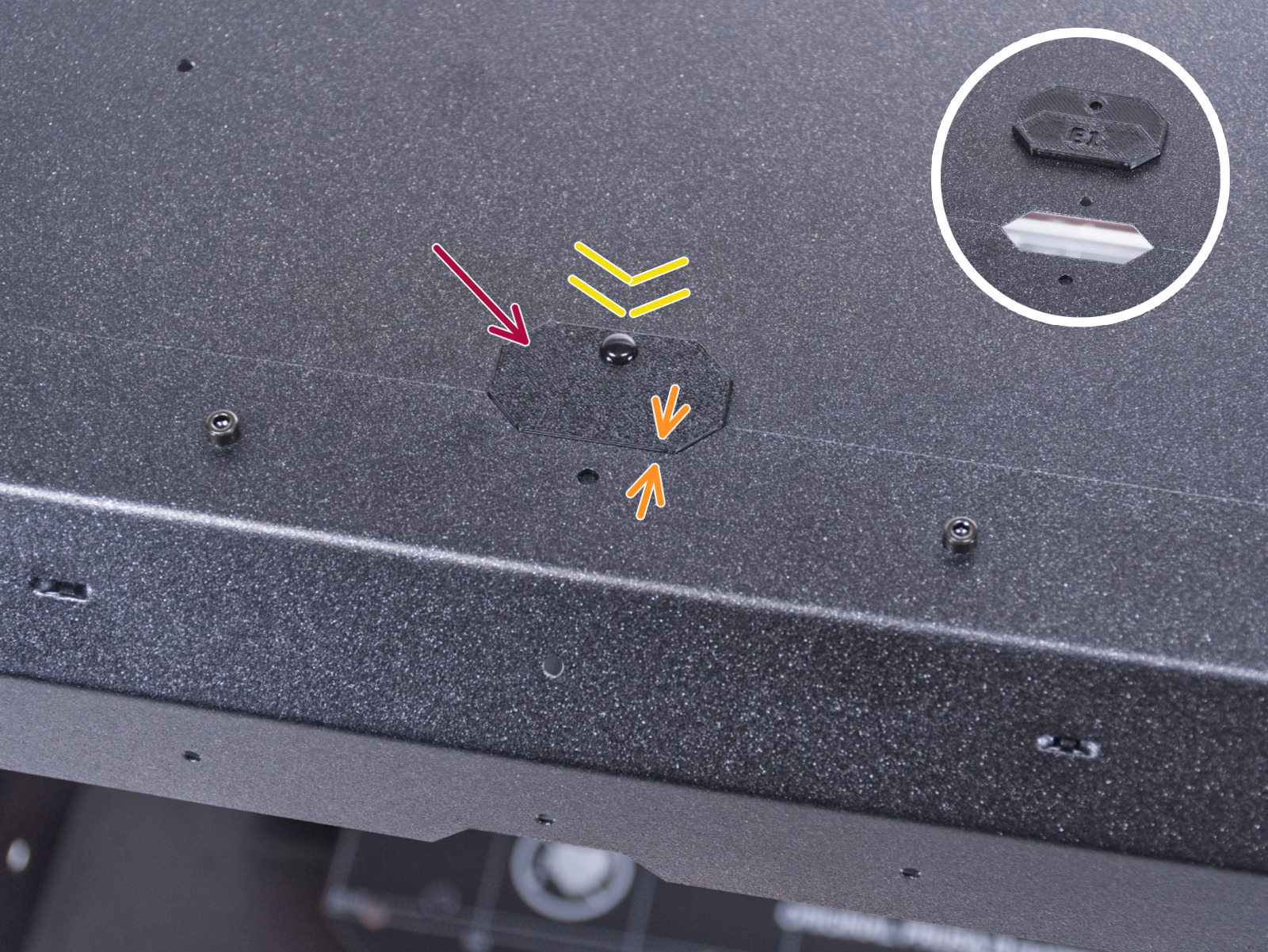

⬢Insert the Top-plug-edge to the cutout in the front of the top panel.

⬢The top surface of the printed part must be flushed with the top surface of the profile.

⬢Secure it with the nylon rivet.

⬢Install the second Top-plug-edge to the same cutout on the rear side of the top panel. Secure it with the nylon rivet.

⬢Insert the Top-plug-center in the rectangular cutout in the center of the top panel. Secure it with two nylon rivets.

⬢Completely insert two M3n nuts into the holes in the Spool-holder-r.

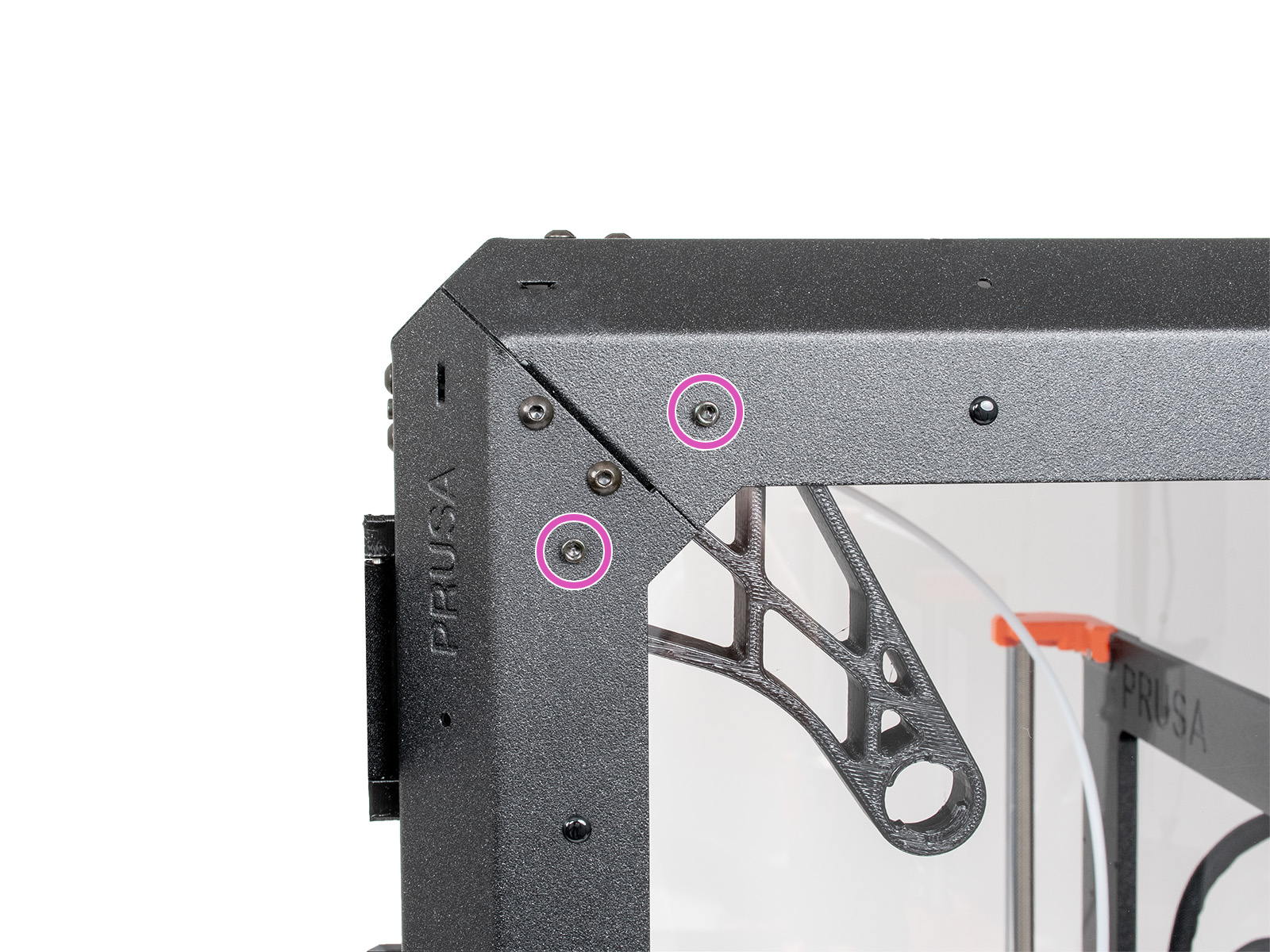

⬢From the inside, attach the Spool-holder-r to the corner on the right side of the enclosure. Secure it with two M3x12 screws. See the orientation of the Spool-holder-r.

⬢Insert the side arm into the Spool-holder-r and turn counter-clockwise to lock it.

⬢After assembly, ensure there is sufficient space between the inside wall of the enclosure and the Nextruder when it is in the top-right position. When printing at the full height of the printer, the Nextruder may come into contact with the filament spool. To prevent this, place the spool on the spool holder as far to the right as possible.

⬢Prusament spools are not affected by this when positioned correctly.

⬢These instructions are the same for the Original Prusa MK4/3.9.

Some of the following steps are marked as optional. If you do not need to install the handles at this time, skip to Reward yourself!

⬢Transport-handle (2x) this part is not included in the package, you will need to print it out

⬢M3nS nut (6x)

⬢M3x12 screw (6x)

⬢Insert two M3nS nuts from the side into each Transport-handle.

⬢Insert the M3nS nut from the other side into each Transport-handle.

⬢Using the knife, CAREFULLY cut off all supports of each handle cutout on the side panels and remove it.

⬢From the inside of the enclosure, push on the nylon rivets using the pliers. And pull them out from the outside.

⬢From the inside, place the Transport-handle into the same shape cutout.

⬢Secure it with three M3x12 screws.

⬢Repeat the same procedure for the second Transport-handle.
