1. Preparing the kit

Step 1 of 15 (Chapter 1 of 10)
Contents
Comments
⬢Welcome to the guide for assembling setting up your Prusa CORE One kit. Follow these steps to ensure your printer is ready for its first print.
⬢Please prepare the kit received from Prusa Research.
No soldering or wire crimping is required.
Important: Please ensure you are using the correct manual. This is the assembly manual for the Prusa CORE One.

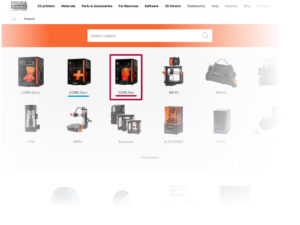

⬢If you are assembling the Prusa CORE One+, please refer to the prusa.io/core-one-plus and select the appropriate assembly manual.

Contents

Prusa CORE One kit assembly (1.00)

Comments

Log in  to post a comment
Lostboy73
•
Download this srew-oragnizer,. It would have been freaking awesome to use when I built mine. ;-)

https://makerworld.com/en/models/2085089-prusa-core-one-screw-organizer?from=search
Reply
Steven Clarke
•
Comment that someone else made much much later but would be great to have up front. Some kind of lazy susan to build on would be great, since you end up spinning the printer around alot to get to the front and then the back and the sides.
That can be a piece of cardboard, or something fancy if you have it.
Reply
Jay Guadagnoli
•
These comments were helpful, and I'll add, I'm in Chapter 7, currently rocking about a 12-14 trays of different screws, all which get used. Don't try to put them back in the bags, but keep them close so you know what they are. If you don't, they will fall out eventually, and thats probably worse when you have no idea where they came from.
You'll need something, it could be anything, but you'll need it.
Reply
RDengevo
•
if you have a Core one + , the build is here https://help.prusa3d.com/guide/1-introduction_981923#982324 but the core one guide has more comments to help assembly
Reply
TT
•
Here are some more tools that would help:

1. A small flathead screwdriver to push the M3nS in.
2. A metal spudgel to help push wires out of the way.
3. Flush cutters to cut the zip ties easily.
4. Masking tape and a Sharpie to label parts.
Reply
dontcallmesurely
•
You will be moving around to different sides of the build frequently. One "technique" that I found helpful: use one of the flat cardboard inserts from the Metal 1/3 box as a makeshift lazy susan so that you can spin the build rather than spinning yourself.
Reply
