Different nozzle types

Last updated 11 days ago
This article is also available in following languages:
CSDEESFRITPL

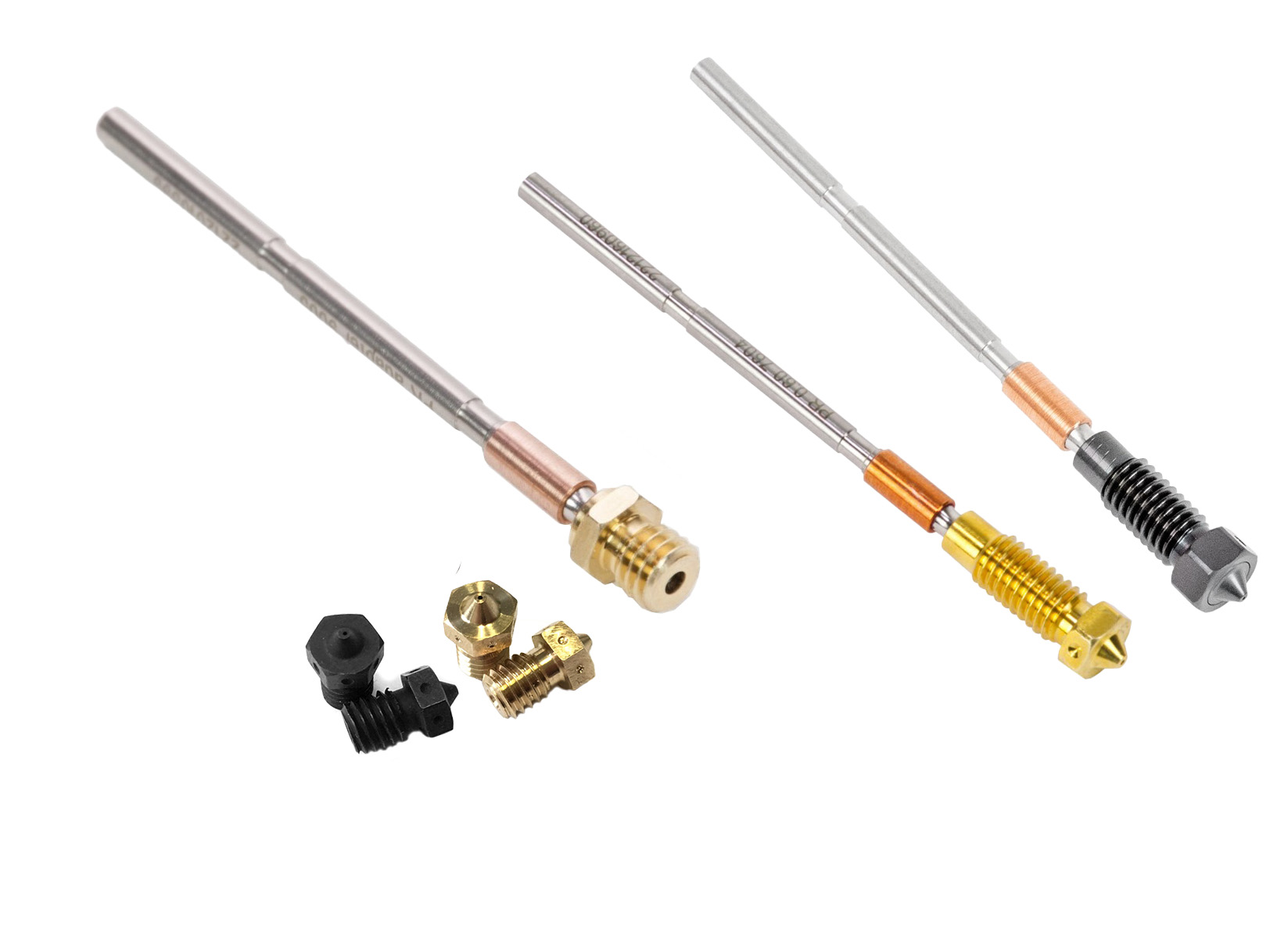

Our printers come equipped with a standard E3D 0.4 mm brass nozzle. However, there is a whole ecosystem of nozzles with different characteristics on the market.

If you need to change or replace the nozzle, please refer to our guide Changing or replacing the nozzle (MK2.5S/MK3S/MK3S+) or Changing/replacing the nozzle (MINI).

Brass nozzle 0.25/0.4/0.6/0.8

Brass has excellent heat conductivity and is tough enough to print most "everyday" filaments. It is also accessible and reasonable to manufacture, which is probably why many 3D printers are supplied with brass nozzle.

Besides the standard 0.4 mm diameter, we provide configurations for 0.25 mm, 0.6 mm, and 0.8 nozzle diameters. On top of that, you can always create and customize your own profiles. To achieve fine detail, you can use a 0.25 mm nozzle. We recommend using it only for very small objects, a few centimeters in size, as the print times are considerably longer compared to 0.4mm nozzles. By contrast, if you want to speed up the print and the details are not as important, you can try using the 0.6 or 0.8 mm nozzle.

Identify nozzle size

On E3D V6 nozzles, you can identify the nozzle diameter by the dots around the rim of the nozzle. The E3D 0.4 mm nozzles shipped with the Original Prusa MK3S+ have three dots (blue arrows).

Note that the E3D V6 0.25 mm nozzle has no dots, and looks almost the same as the E3D compatible 0.4 mm nozzle which ships with the Original Prusa MINI.

Markings apply to all E3D V6 nozzle types (brass, hardened, X).

PrusaSlicer configuration

To adjust preset settings in PrusaSlicer, go to Configuration -> Configuration Wizard and select the printer model you have as well as the nozzle diameter you are currently using (purple squares).

Unclick all the other models and nozzle diameters to avoid confusing the presets. You can always do the Wizard again and modify the settings. For how to set a different nozzle size on your printer, please see HW setup (MK2.5/S & MK3/S/+).

Except for the presets for the stock 0.4 nozzle, all other nozzle configurations will have the diameter stated in the name of the profile. If you don't have the words "0.25 nozzle", "0.6 nozzle" or "0.8 nozzle" in the profile's name (green square), the preset is for a 0.4 mm nozzle.

Hardened steel nozzle by E3D

E3D, a UK-based company, that supplies hotends for the Original Prusa i3 printers, has a whole ecosystem of upgrades and add-ons. We support some of them, including the hardened steel nozzle.

Hardened steel nozzles are a must for highly abrasive materials. A regular brass nozzle will degrade very quickly and lose its properties when printing these. You should note that a hardened steel nozzle is not the same as a stainless steel nozzle.

Most of the abrasive materials are composites, plastics with additives. Some examples are ColorFabb XT CF20, ColorFabb Bronzefill, ColorFabb SteelFill, and some glow-in-the-dark filaments. Always ask your filament vendor if you are not sure about filament requirements. A slight disadvantage of the hardened steel nozzle is that some standard materials like ABS cannot be printed as fast as with a regular nozzle. Due to the different thermal properties of a hardened steel nozzle compared to a brass nozzle, you may have to increase the nozzle temperature when printing.

For multi-material printing using the Original Prusa MMU2S, we only provide presets for a 0.25 mm, 0.4 mm, or 0.6 mm brass nozzle. Other types of nozzles, i.e. hardened steel or other exotic alloys, may cause issues.

Nozzle X by E3D

Nozzle X is a nozzle designed to address the thermal limitations of a hardened steel nozzle and the poor abrasion resistance of plated copper or brass nozzles. It is coated with WS2, a poly-phobic coating, that reduces the amount of plastic that sticks to the inside of the nozzle. For this reason, Nozzle X should not be maintained the same way as hardened steel or copper nozzles.

It can be used with abrasive fillers like glass, kevlar, or carbon reinforcement, but does not support more abrasive fillers, like Boron Carbide, Boron, Boron Nitride, Tungsten, or Tungsten carbide.

Recommended cleaning methods:

  • Non-abrasive cloth/rag for external use.
  • Cleaning filament for internal use.

Non-recommended cleaning methods:

  • An acupuncture needle or a brass brush can damage the coating.
  • Cold-pulls. Can tear off the WS2 coating.

The Olsson Ruby nozzle

Similar to the hardened steel nozzle, The Olsson Ruby is designed to print highly abrasive materials. Since it is mostly made of brass, it retains the excellent heat conductivity and throughput of the stock brass nozzle, but with a very hard gemstone as its tip. Even though the ruby gemstone is highly wear-resistant, it’s also brittle. If you have the Live Z adjust value set incorrectly, or if your PINDA sensor is not set to a correct distance and the nozzle hits the removable steel sheet, the nozzle may crack. For installation, please refer to the official 3DVERKSTAN instructions, as its installation is a bit more involved.

Other nozzle diameters

If you want to use a nozzle with a different diameter than the ones we already mentioned, you have to create the profile in PrusaSlicer manually. Starting with your standard 0.4 mm nozzle, you have to change the nozzle diameter in the Printer Settings and Extrusion width (percentage-wise). Keep in mind that the maximal layer height is always around 80% of the nozzle diameter. For more information, please see Creating profiles for different nozzles.

A 0.1 mm nozzle can be considered experimental; Its small diameter will not work with all filaments, the tolerances required in its manufacturing are hard to guarantee and the excessive printing time it requires can be beyond reasonable. For these fine resolutions, you may want to consider SLA printing.

First Layer Calibration of other nozzles

When changing the nozzle, regardless of size, the optimal first layer height (Live Adjust Z) will change. Since our firmware is coded around a 0.4 mm nozzle, you may not get optimal results running the built-in First Layer Calibration from the LCD menu. You must slice and export a G-code, which you use to set the Live Adjust Z value from the Tune Menu.

This can be done with your intended model, but to ensure a good first layer we recommend running a test print sliced and exported using the 0.25 mm or 0.6 mm nozzle configurations in PrusaSlicer.

  • For a 0.25 mm nozzle we recommend the '0.15 mm QUALITY' print setting.
  • For a 0.6 mm nozzle we recommend the '0.3 mm QUALITY' print setting.
  • For a 0.8 mm nozzle we recommend the '0.4 mm QUALITY' print setting.

You can use a simple rectangle or download a test print. These can be found at our print depository Printables.

You can easily create a rectangle in PrusaSlicer by right-clicking on an empty build plate and select 'Add Shape -> Box'. Then scale it to be 0.2-0.4 mm tall, depending on the nozzle you are calibrating for. You want a box that is only one layer thick.

Reset Live Adjust Z value:

  • Original Prusa MK3S+/MK3S/MK2.5S - Reset your Live Adjust Z value from LCD menu -> Settings -> Live Adjust Z, then scroll the selector knob clockwise until the value reaches zero.
  • Original Prusa MINI - Reset your Live Adjust Z value from LCD menu -> Calibration -> Live Adjust Z, then scroll the selector knob clockwise until the value reaches zero.

After this, start your G-code and 'Adjust Live Z' while printing:

  1. Press the knob after it has started extruding and locate 'Adjust Live Z'.
  2. Select it and turn the knob clockwise until the line is flattened, but not squished. It should have a smooth top. When doing solid top-fill, make sure there are neither gaps between the lines (too far away), nor ridges between the lines (too close). Please see First Layer Calibration (i3) or First Layer Calibration (MINI/MINI+) for examples.
  3. Press the selector knob again to store the value.

The image depicts the first layer of a 0.4 mm nozzle. The line can be almost half the width of what is depicted.

Other considerations

Smaller diameters (~0.25 mm)

Almost any Composite material is out of the question. The particles in it can (and will) quickly clog or ruin your nozzle. However, filaments with fine glitter or similar "shine particles", like what is found in Prusament Galaxy Silver, should be no problem.

Flexible materials can also be problematic on a smaller diameter nozzle due to the higher pressure required for extrusion. It can buckle and tangle around the filament pulleys with higher pressure.

Higher temperature filaments like ASA and PC Blend have a rather high melt-flow rate and will print well with a 0.25 mm nozzle. However, it can not have composite particles like kevlar, carbon fiber, or glass.

Slow speed - Precision takes time, prepare yourself for printing times of 24 to 100 hours, even with smaller objects. Not only is each line thinner and narrower than usual, which results in more perimeters, but the extruder movements are also greatly reduced to accommodate the increased accuracy.

When printing with a smaller nozzle, calibration and bed leveling become even more important. After changing the nozzle, make sure you at least run the Z calibration of your printer before you start printing.

Besides the First layer calibration, additional calibration is not necessary on the Original Prusa MINI.

Larger diameters (>0.6 mm)

The main drawback is its resolution. The thicker and taller layer lines will print the object faster but will have limitations in regards to fine details. On the other side, functional parts may prove stronger since each line has a larger amount of solid material.

Also, thanks to the larger nozzle diameter there will be more solid material to cool down which may increase warping. This might be an issue for materials prone to warping during print, like ABS or PC Blend.

Nozzle size / Material0.25 mm0.4 mm0.6/0.8 mm
Flexible materials
PLA
ASA/ABS
PETG
wood/metal infused✔ *
CF/kevlar infused ABS✔ *✔ *
PC Blend
Nylon
PVA/BVOH

* Hardened nozzle

To avoid clogging, we recommend using our Prusament, as it has a low diameter variation tolerance of ±0.02 mm. For more information on different filaments, see our extensive Material table.
