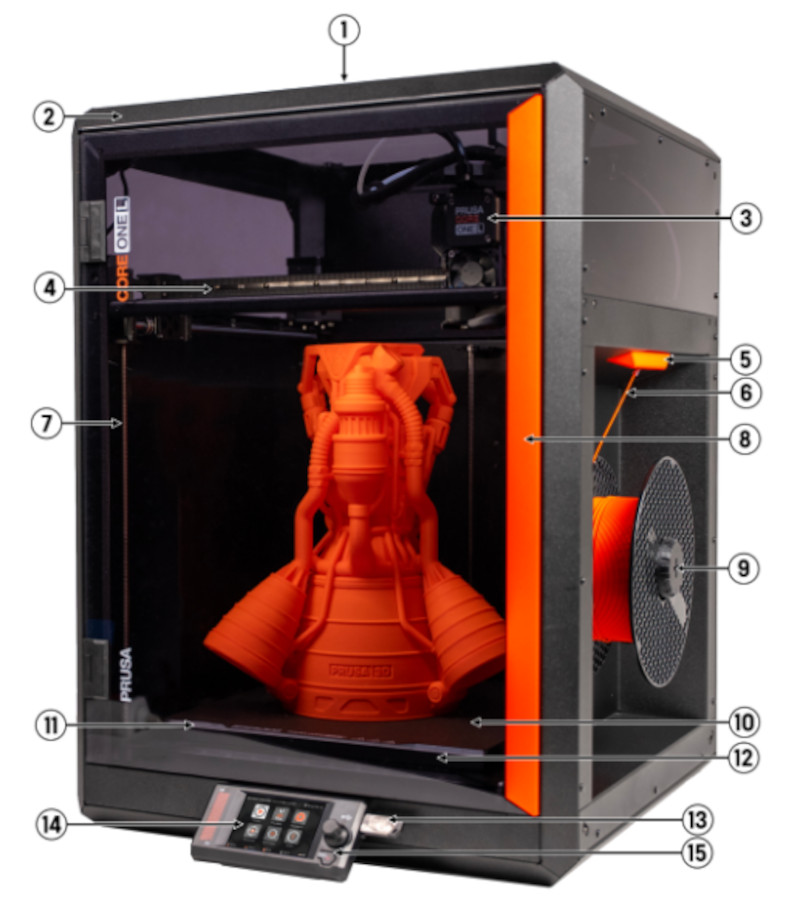

- Ventilation grille (on the top): to maintain airflow when printing with materials such as PLA or PETG.
- Frame: an exoskeleton design for maximum strength and robustness.
- Nextruder: our next-generation extruder with a planetary gearbox and LoadCell sensor.
- XY-carriage: a horizontal assembly consisting of motors, belts, linear rails, pulleys, and plastic parts; moves the Nextruder left and right, and forward and backward.
- Handle: located on both sides, used for lifting and moving the printer.
- PTFE tube: insertion point for filament.
- Z-Axis: a vertical assembly consisting of smooth and threaded rods and three motors; moves the heatbed up and down.
- Door Handle: used to open the door.
- Spoolholder and Filament Spool: The Prusa CORE One is compatible with 1.75mm filaments.
- Print sheet: easy to maintain; held in place with strong magnets embedded in the heatbed.
- Heatbed: the proven Prusa MK52 heatbed.
- LED indicator light: indicates the printer's current status using different colors.
- USB port and USB drive: used to print G-Codes (print files) and flash firmware from the USB drive.
- LCD: used for control and configuration of the printer.
- Rotary knob: the main control device with the reset button directly below it.

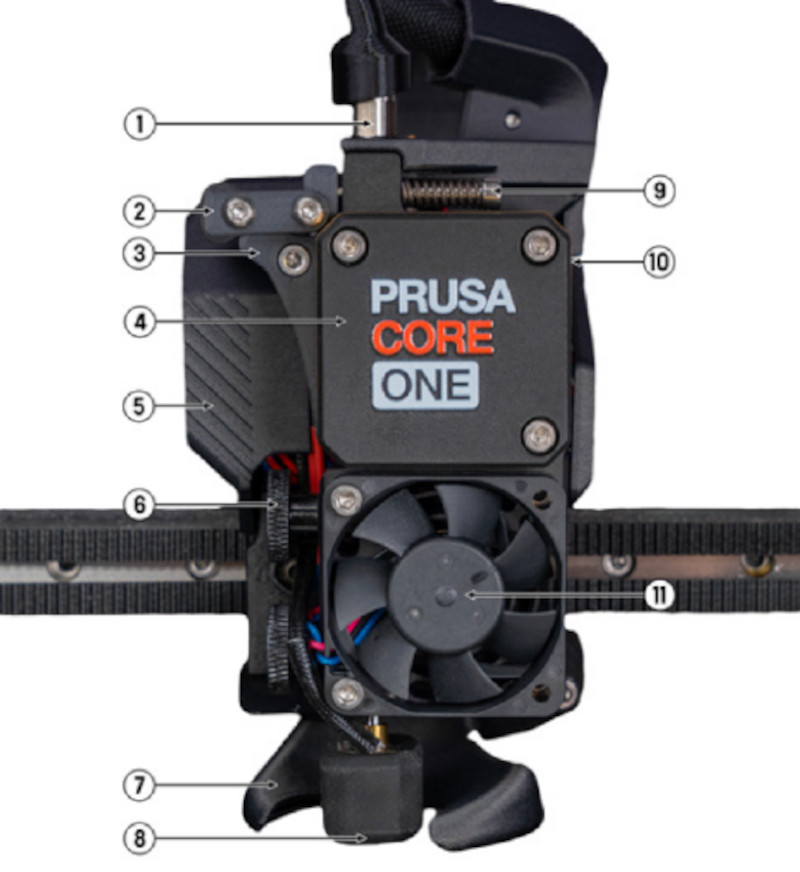

- Filament Insertion Point: As you insert the filament into the PTFE tube on the side of the printer (next to the spoolholder), this is the point where it feeds into the Nextruder.
- Idler lock (swivel): flip upwards to unlock the idler door.
- Idler: maintains pressure on the filament strand, which is moved further into the extruder by the extruder gear
- Planetary gearbox and extruder motor.
- Electronics cover: covers the breakout board.
- Thumbscrews: you can detach the nozzle by unscrewing the thumbscrews.
- Print Fan shroud: directs the air from the high-performance turbine print fan towards the printed object.
- Heaterblock with Nozzle: by default, a CHT 0.4 mm nozzle is installed.
- Idler screws: these screws are used to adjust the pressure of the idler.
- Print fan (back side): high-performance turbine for cooling the printed object.
- Heatsink fan: cools the aluminum heatsink behind it
