⬢The kit includes:
The bag with tools is included in the YZ & X-AXIS box. Please prepare it now.
⬢Allen keys including one TORX key

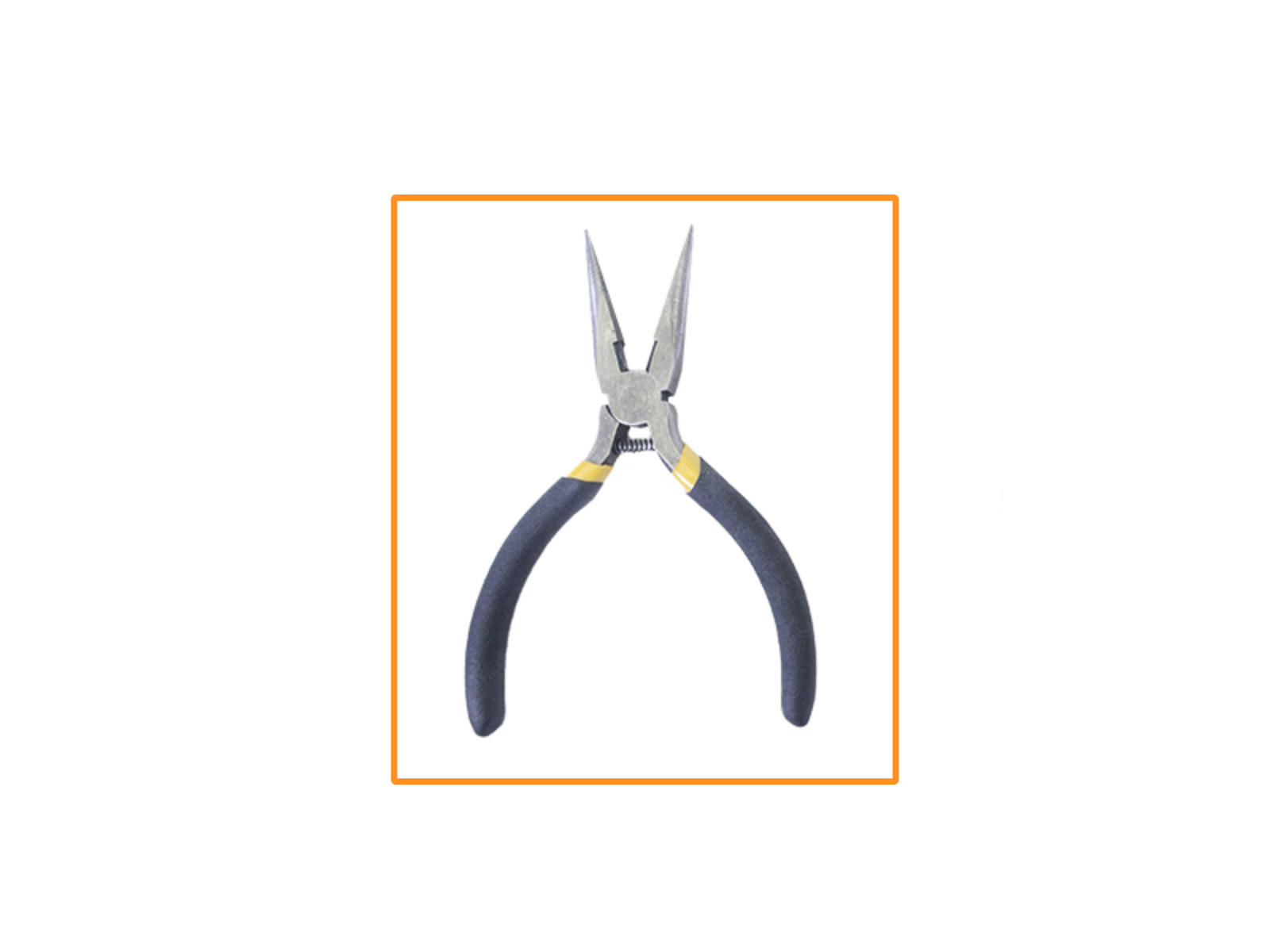

⬢Needle-nose pliers (1x)
⬢Universal wrench (1x)
ハンダ付け作業は必要ありません。
圧着工具は必要ありません。
JA
Login- English
- Čeština
- Español
- Italiano
- Deutsch
- Polski
- Français
- Home
- MINI+
- 組立てガイド
- MINI+ kit assembly (draft) [進行中の翻訳]
- 1. Introduction
1. Introduction
Menu
- MINI+ kit assembly (draft) [進行中の翻訳]
- 1. Introduction
- 1. 必要な工具はすべて付属しています。
- 2. Universal wrench - description
- 3. Tools required for lubricating bearings
- 4. Labels guide
- 5. ラベルを参照する
- 6. Spare bag
- 7. 高解像度の画像を見る
- 8. サポートが必要な時はこちらから!
- 9. Important: Electronics protection
- 10. ヒント: ナットを差し込む
- 11. Pro tip: inserting the square nuts
- 12. Reward yourself
- 13. 正しく組み立てる方法
- 2. YZ - axis assembly
- 3. X-axis & Extruder assembly
- 4. Print head & Heatbed assembly
- 5. LCD assembly & Electronics
- 6A. Spool holder assembly
- 6B. Spool holder assembly
- 7. Preflight check
- Manual changelog MINI+ kit
1. Introduction
Relevant for:
Last updated 2 months ago Difficulty
Very easy Steps
13 Available languages
⬢The universal wrench is designed for tightening all these fasteners used on the MINI+ printer:
⬢1. Brass nut
⬢2. M3nN nyloc nut
⬢3. Brass nut
⬢4. Nozzle
⬢5. Heatbed spacer
In some chapters there are instructions for lubricating the bearings before using them.
⬢For these instructions, the kit includes:
⬢Prusaグリース塗布器(1個)
⬢Prusa lubricant (1x)
⬢組立に必要な部品が入っている全ての箱や袋には、ラベルが貼られています。
⬢Each bag (or box) label describes in which chapter you will need it.
⬢ほとんどのラベルは1:1の縮尺で、パーツの識別に使用できます :-)
⬢最も一般的なよく使う ネジ、ナット、PTFEチューブ など、 実寸大が描かれた Prusa Cheatsheet で、一つ一つ確認することができます。
help.prusa3d.com/cheatsheet から Prusa Cheatsheet をダウンロードすることができます。プリントは 100 % で、行ってください。拡大、縮小はうまくプリントできないのでしないでください。
⬢全種類のネジやナットといった留め具は、この特別な袋に用意されています。
If you lose a screw during assembly, use one from this bag.
help.prusa3d.comの組み立てガイドをご覧頂くと、オリジナルの画像を高解像度で見ることができます。
⬢画像にカーソルを合わせ、左上にある拡大鏡ボタン（「オリジナルを表示」）をクリックします。
⬢説明書がない、ネジがない、プリント部品のひび割れがあれば、お知らせください。
⬢You can contact us using following channels:
⬢各ステップの下からコメントをします。
⬢24時間365日対応のライブチャットshop.prusa3d.comをご利用ください。
⬢Emailはこちら。[email protected]
WARNING: Make sure to protect the electronics against electrostatic discharge (ESD). Always unpack the electronics right before you need them!
⬢以下は、電子機器の損傷を防ぐためのヒントです：。
⬢電子機器を設置するように指示があるまで、ESDバッグの中に入れておいてください。
⬢Always touch the sides of the board while manipulating with it. Avoid touching the chips, capacitors and other parts of the electronics.
⬢Before you touch the electronics use any conductive (steel) structure nearby to neutralize any electro-static energy.
⬢静電気を発生させる カーペットがある部屋での使用は、特に気をつけてください。
⬢Clothes made of wool and certain synthetic fabrics can easily gather static electricity. It is safer to wear cotton clothing.
⬢3D printed parts are very precise, however, there still might be an occasional lack of uniformity in the printed part and same goes for the size of the nut.
⬢Therefore it might happen, that the nut won't fit in easily or might be falling out. Let's see, how to fix it:
⬢ナットが入らない：全長にわたってねじ山があるねじ（通常：M3x10、M3x18）を使用し、本来使用する開口部の反対側からねじを通し、ナットを締めていきます。ネジを締めていくと、ナットがプリントパーツに引き込まれていきます。その後、ネジを外すようにします。
⬢Nut keeps falling out: Use a piece of tape to fix the nut temporarily in place, as soon as you insert the screw in, you can remove the tape. Using glue isn't recommended as it can partly reach into the thread and you won't be able to tighten the screw properly.
⬢Whenever you need to fit the nut that doesn't fit properly, we recommend using "screw pulling technique". You will be reminded with Joe's avatar ;)
写真のパーツは一例です。
Always check the correct position of the M3nS nuts in the printed parts immediately after insertion. Improperly inserted nuts will not allow proper assembly of parts.
⬢Make sure the nut is inserted all the way in. Use the following methods:
⬢Use a 2.0mm Allen key for easier insertion into the hole.
⬢Check the hole alignment by using a 2.0mm Allen key.
⬢Check visually if the hole in the nut is aligned with the hole in the printed part.
⬢Building the MINI+ printer is a challenge unlike any other and you should reward yourself for every milestone you reach. That is why a bag of Haribo Bears is included!
The biggest issue from the previous builds (MK3S+, SL1) which we had to address was inadequate bear consumption. Many of you didn't have enough bears for all chapters, some even ate them all before they started!
⬢各章または各章の難関セクションが終了次第、次のステップのためにエネルギーを補給しましょう。
⬢始める前に、または一度にすべてのクマを食べないでください！ 指示に従わないと深刻な結果を招きます。現在、この問題のためにPrusa Haribo 戦術部隊PrusaHariboを編成しています。
Hide the Haribo for now! From our experience, an unattended bag with sweets tends to suddenly disappear. We are still investigating this phenomenon.
All information provided in this step is based on a long-term very serious research study ;)
To successfully finish the assembly please complete each of the following:
⬢Always read all the instructions at the current step first. This will help you to understand, what you need to do. Don't cut or trim unless you are told to!!!
⬢Don't follow pictures only! It is not enough, the written instructions are as brief as they can be. Read them.
⬢Read the comments from the other users. They are a great source of ideas. We read them too and based on your feedback improve the manual and the entire assembly.
⬢Use a reasonable force. The printed parts are tough, but not unbreakable. If it doesn't fit, check your approach twice.
⬢指示通りにハリボーグミを食べてください！食べ過ぎはいけませんよ。:D
⬢最も重要なこと: 組み立てを楽しんでください。お子様、友達、パートナーと一緒に協力してください。 ただし、私たちは争い事には一切責任を負いません;)
⬢Ready for more? Let's move to the next chapter: 2. YZ - axis assembly
