Printer does not turn on or keeps turning off

If your printer doesn't turn on, keeps turning off, or is stuck in a boot loop, see here how to fix the issue.

The printer must be powered off and disconnected from power when the electronics are being accessed.

The printer is stuck in a boot loop

This can happen if you are trying to re-flash the printer firmware, or on rare occasions when trying to start a print. The solution for this issue is to turn off the printer on the PSU button and turn it on again (do not use the LCD reset button for this issue).

In case the issue is not fixed, make sure that all the cables are properly connected to the main board.

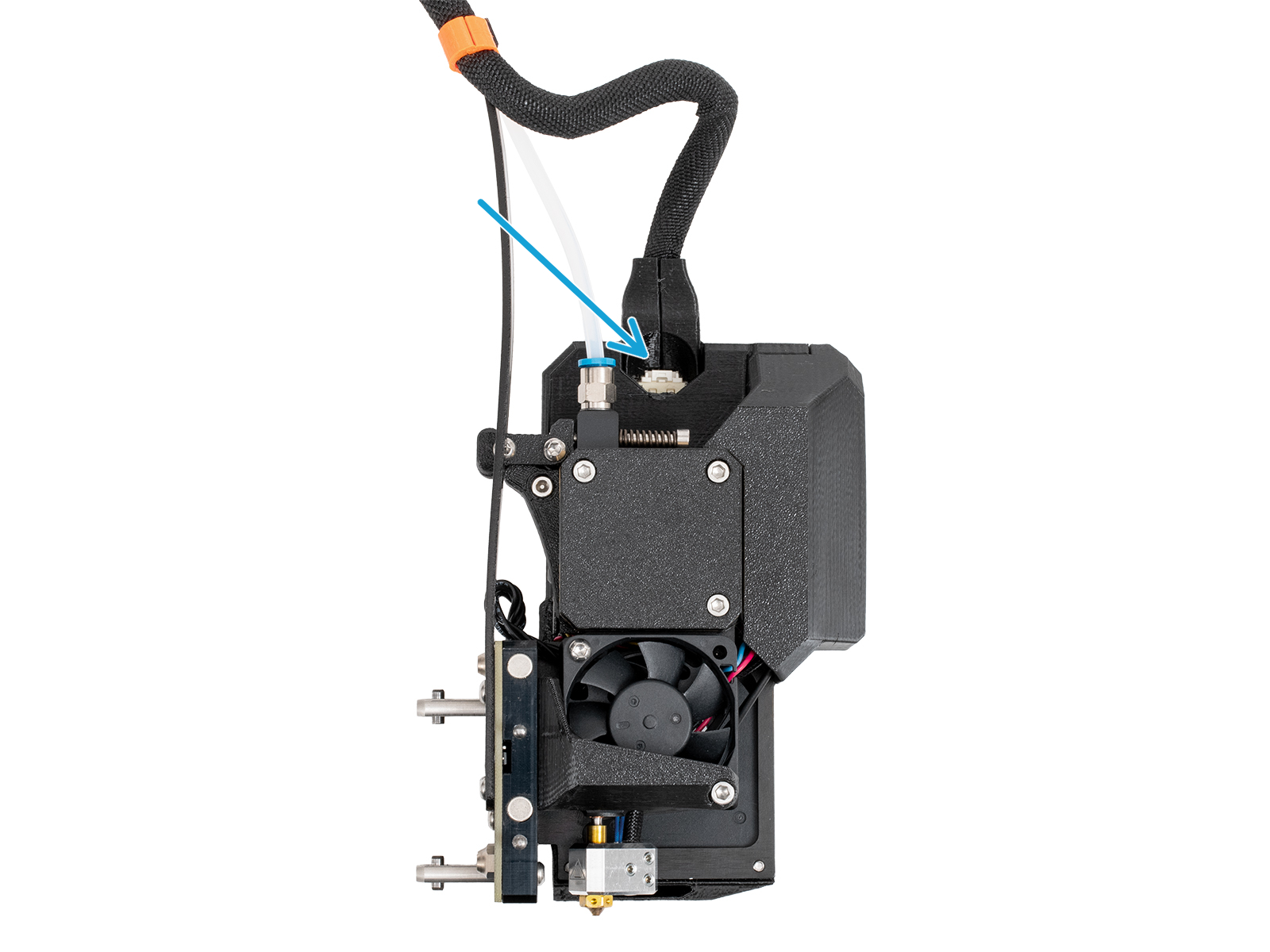

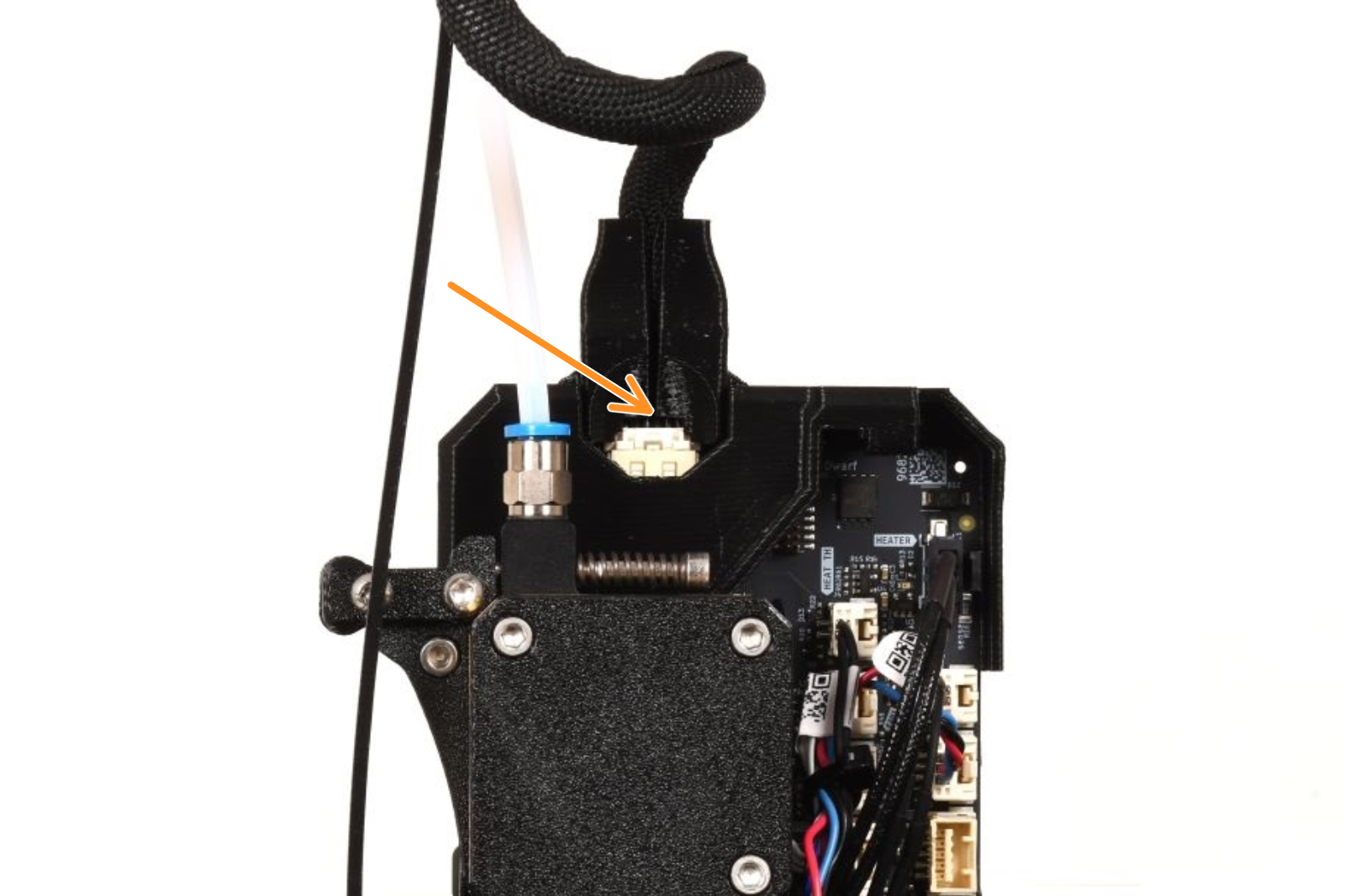

For the printers with the Nextruder, check also the main cable. On the CORE One, MK4/S, and MK3.9/S, that is the cable that leads the XBuddy board to the Nextruder. Make sure that it is well-connected on both sides and that the length of the cable has no damage.

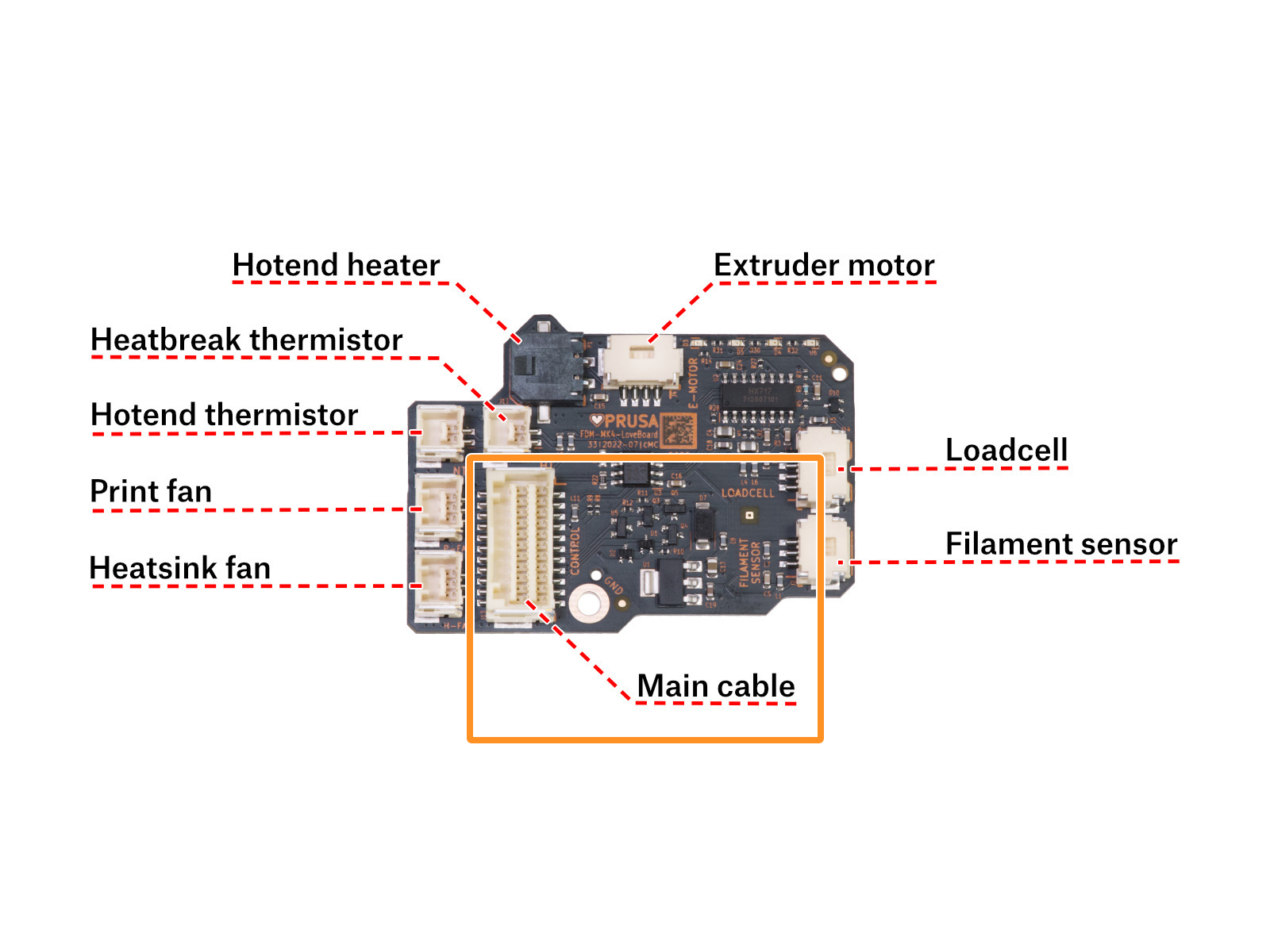

On the XL, check the main cable connection on the Dwarf board, Sandwich board, and if applicable, the XL Splitter board.


XL Single-tool	XL Multi-tool

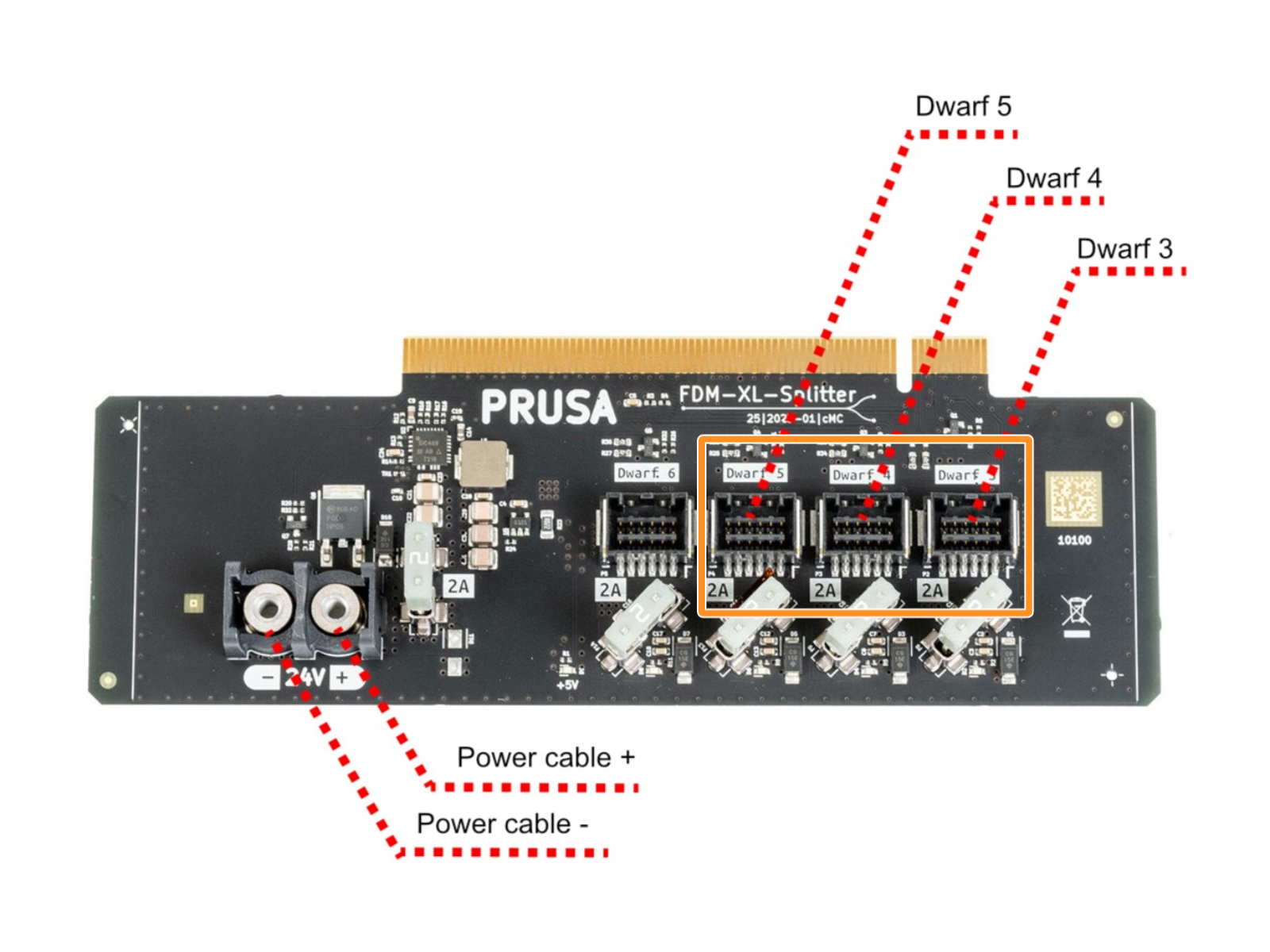

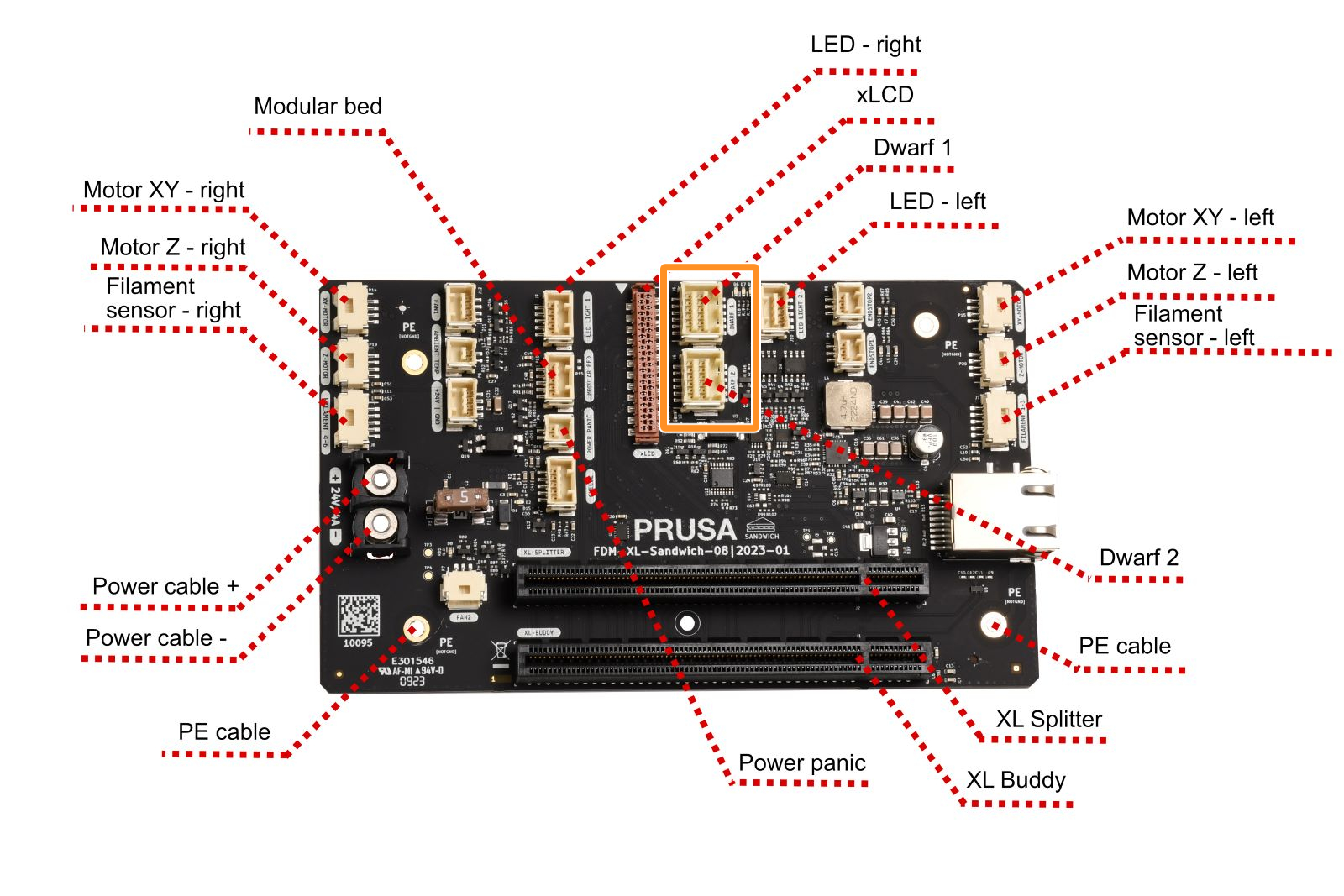

Sandwich board connectors	XL Splitter board connectors

The printer does not turn on

If your printer does not turn on at all, then there might be a more serious problem present. Try the following steps:

Turn the printer off and disconnect the power cord.
Check all the wiring for broken cables. In some cases, overtightening the zip-ties can damage the wire insulation and cause a short.

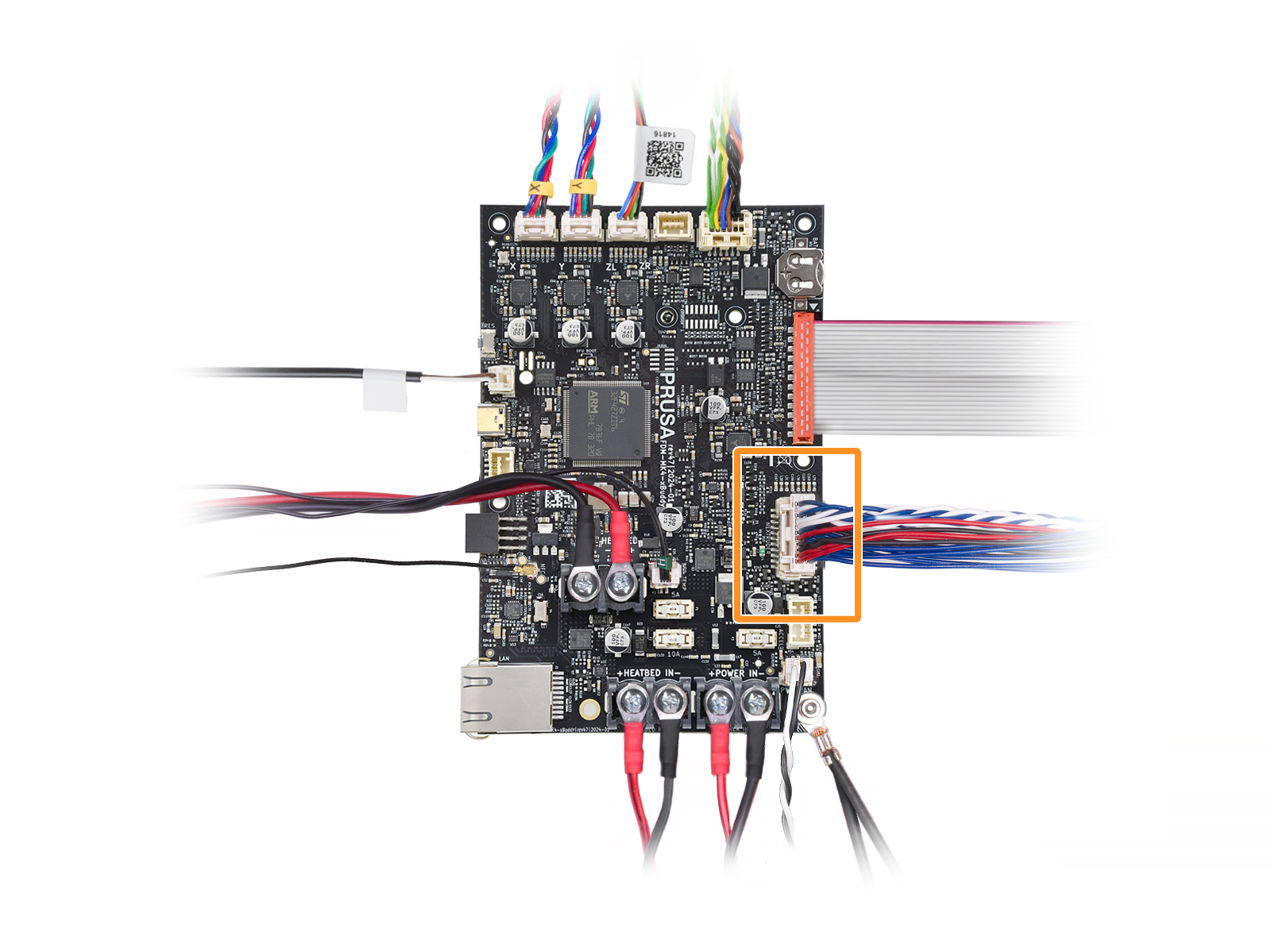

Check the wiring of your main board. Make sure that the PSU cables are properly plugged in.

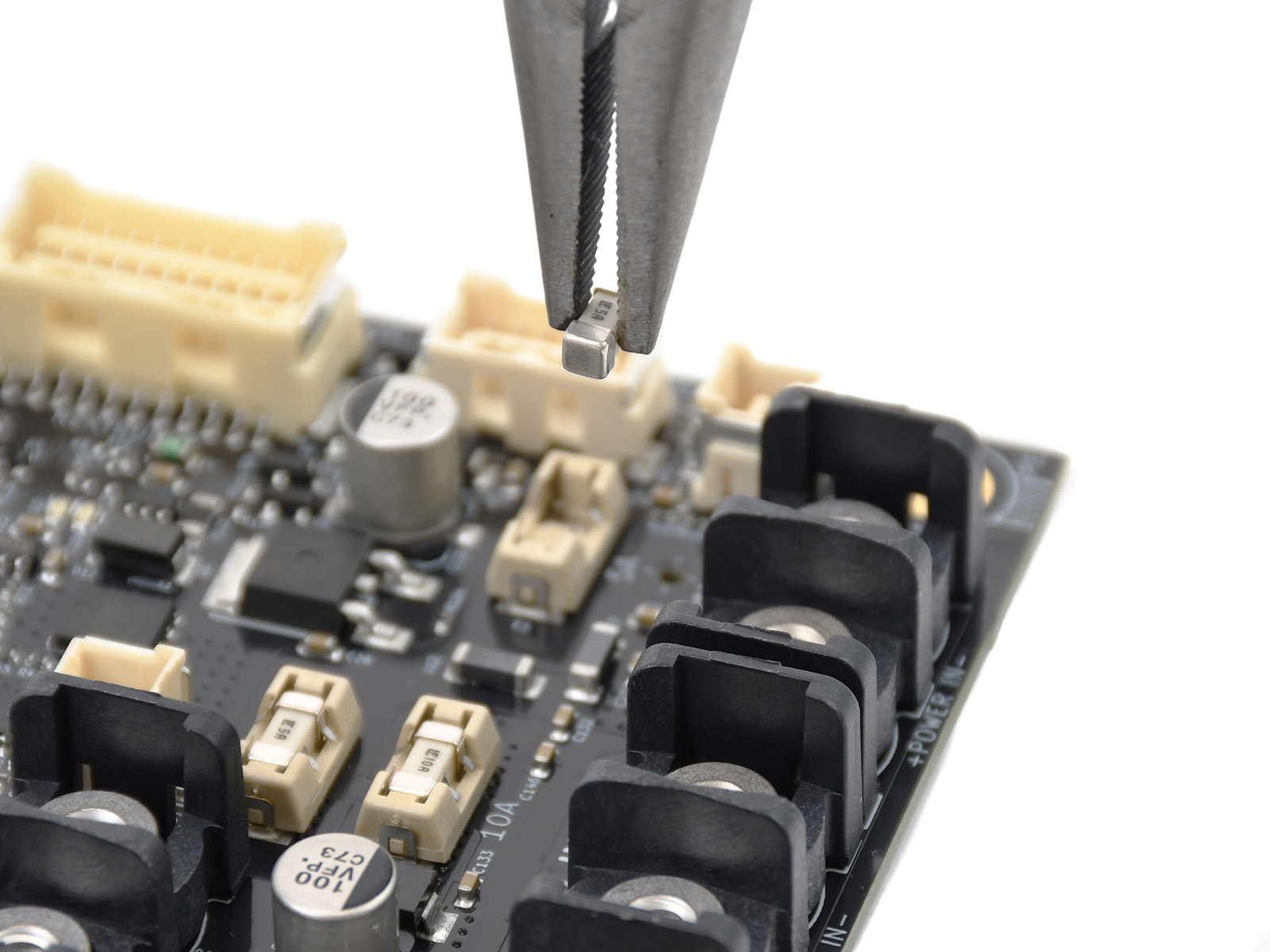

Use the appropriate guide to check if any of the fuses in your printer are blown:


Blade fuses	SMD fuses

MK2S / MK2.5 / MK2.5S

If your printer happens to power off during the initial preheating process, there's usually no serious damage. Most likely, you just have the voltage switch set to 220V in a 110V power environment.

Turn the printer off and remove it from the power source.
Find the AC voltage switch for 110V or 220V on the PSU.
Make sure that the rocker is switched to your local voltage setting.
Try to turn the printer on again.

Both the silver and black Delta PSUs will automatically switch between 110V and 220V, depending on the grid it is connected.

Checking the status LED on the PSU

Every PSU has a green indicator LED to show whether it is active or not.

The silver PSU has this located inside its case, seen through the metal cover, in the bottom-left (purple arrow).

The black Delta PSU has this LED hidden behind the cover of its terminals. Remove the two screws on the cover (green circles) to reveal the terminals, for probing with a multi-meter, and the green indicator-LED (orange arrow).
