Heatbed Port Overcurrent #31309 (CORE One) #26309 (MK4S) #1…

What happened?

Your printer is showing the message: "Overcurrent detected on xBuddy/Buddy heatbed port, disconnect the device."

Error name: Heatbed Port Overcurrent

Error code: #31309 (CORE One) #26309 (MK4S) #13309 (MK4) #27309 (MK3.9S) #21309 (MK3.9) #28309 (MK3.5S) #23309 (MK3.5) #12309 (MINI)

The error is shown when there is a damaged cable on the heatbed or any of its connections.

How to fix it?

Before manipulating any cables or electronic components, ensure the printer is fully cooled down to room temperature and switched off.
Avoid touching the surface of the xBuddy/Buddy mainboard, touch it only from its edges.

The most likely cause of this issue is damage to the heatbed cable. Check the path between the heatbed and the xBuddy/Buddy board, and see if there are any parts that are broken or pinched.

In case there is no damage, check the cable connection to the heatbed and to the xBuddy/Buddy board. Try reconnecting the connectors.

In rare cases, this error message can be shown in case of damage to the mainboard. So if the cables and connectors are intact, try checking the board for any damage.

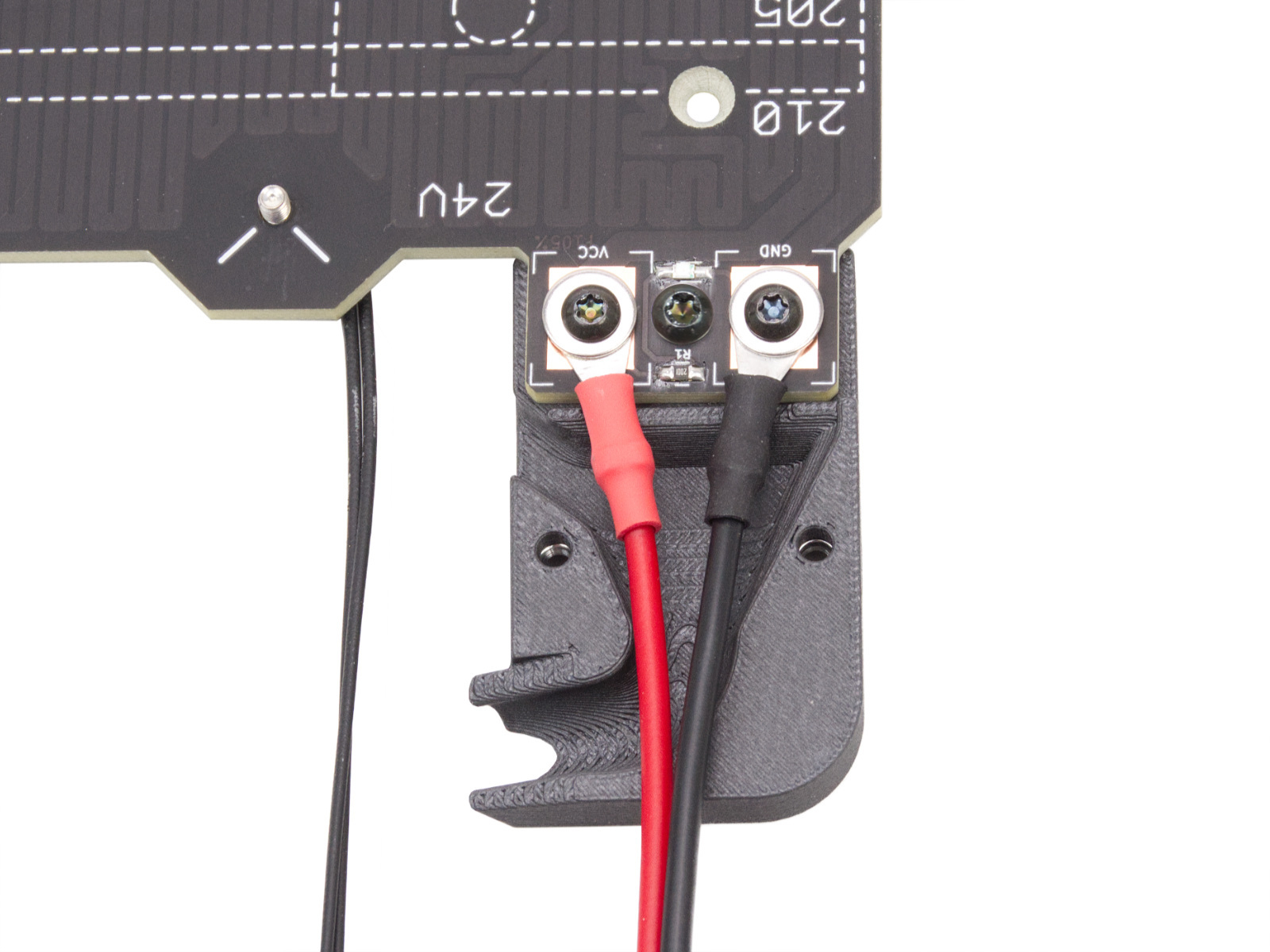

CORE One heatbed	MK4/S, MK3.9/S, MK3.5/S heatbed

xBuddy board (CORE One, MK4/S, MK3.9/S, MK3.5/S)


MINI/+ heatbed (bottom)	MINI/+ heatbed (top)

MINI/+ Buddy board	MINI/+ Buddy board
